Ipex 053081 fe bfly vlv pvc/pvc epdm fl wafer xirtec140

Product Description

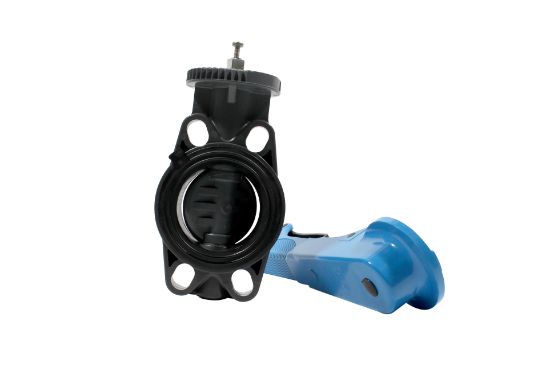

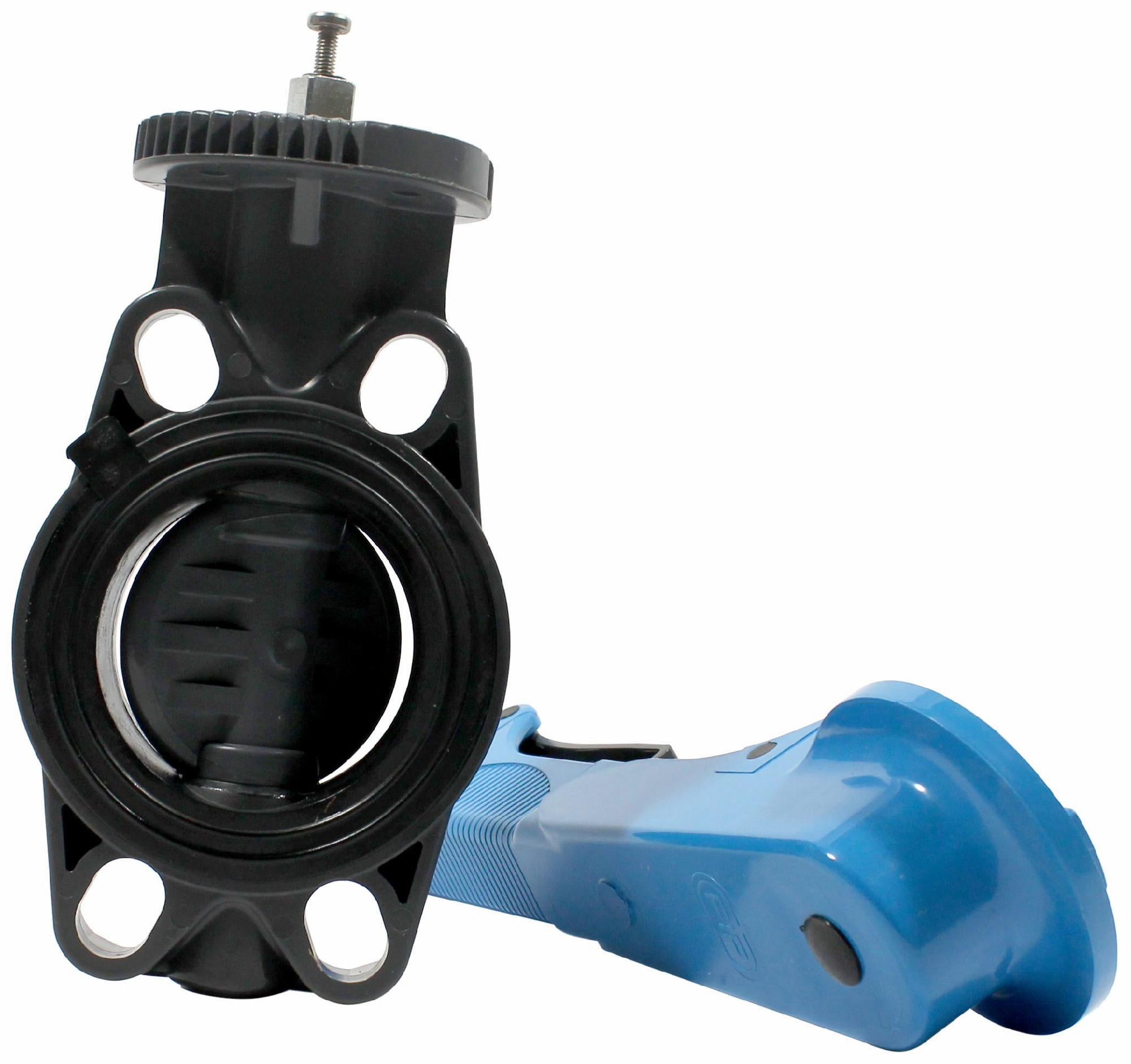

The IPEX 053081 FE butterfly valve incorporates many features of the industrial FK valve at a competitive price. Constructed from PVC with an EPDM liner, this valve is suitable for applications from swimming pools to chemical processes. Operated via a lever handle, it offers excellent chemical resistance.

• Excellent chemical resistance
• Temperature rated up to 150 psi at 73 Degrees F depending on the size
• Handle incorporates a transparent PVC plug and tag holder for valve identification

Product Highlights

The IPEX FE butterfly valve is a competitively priced thermoplastic valve with PVC construction and EPDM liner, ideal for diverse applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 053081
• Country of Origin: South Korea

Technical Specifications

• Connection Size: 3"
• Connection Type: Flg
• Brand: Ipex
• MPN: 053081
• Butterfly Valve Type: Wafer
• Diameter: 3 in
• End Connection: Flared
• Material Type: PVC
• Maximum Temperature: 73
• Style Name: Xirtec FE Series
• Valve Size: 3 in.
• Valve Type: Butterfly Valve
• Pressure - High: 150 psi
• Valve Seat Material: EPDM
• Material: Plastic;Rubber
• Size: 3 in.
