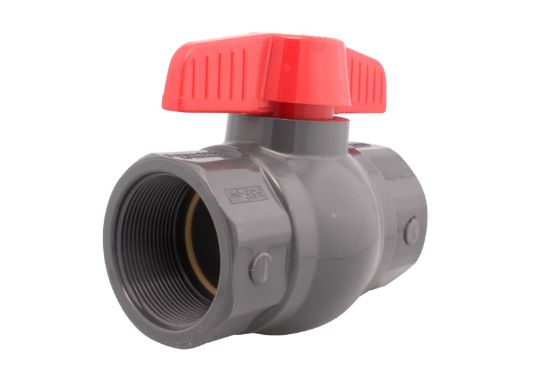

Ipex 052144 Xirtec MP Series 2 in. Threaded Schedule 80 Compact Ball Valve

Product Description

The IPEX 052144 Xirtec MP Series compact ball valve features EPDM seals and PTFE seats, making it suitable for plumbing and industrial applications requiring an inexpensive on/off valve. Constructed from Schedule 80 grey PVC, this valve features threaded connections. Rated to 150 psi at 73 Degrees F.

• Rated up to 150 psi at 73 Degrees F and available in sizes 1/2 in. to 2 in.
• Can be used for a variety of plumbing and industrial applications
• Inexpensive on/off valve
• Compact size for easier installation

Product Highlights

The IPEX Xirtec MP Series ball valve is a compact, cost-effective solution for on/off control in plumbing and industrial systems.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052144
• Country of Origin: Taiwan

Technical Specifications

• Colour/Finish Category: Greys
• Colour/Finish Name: Grey
• End Connection: Threaded
• End Connection 1: Threaded
• End Connection 2: Threaded
• Material Type: PVC
• Maximum Temperature: 73
• Schedule: 80
• Style Name: Xirtec MP Series
• Valve Seat Material: PTFE
• Valve Size: 2 in.
• Valve Type: Compact Ball Valve
• Product Type: Ball Valves
• Pressure - High: 150 psi
• Material: Plastic;Rubber
• Size: 2 in.
