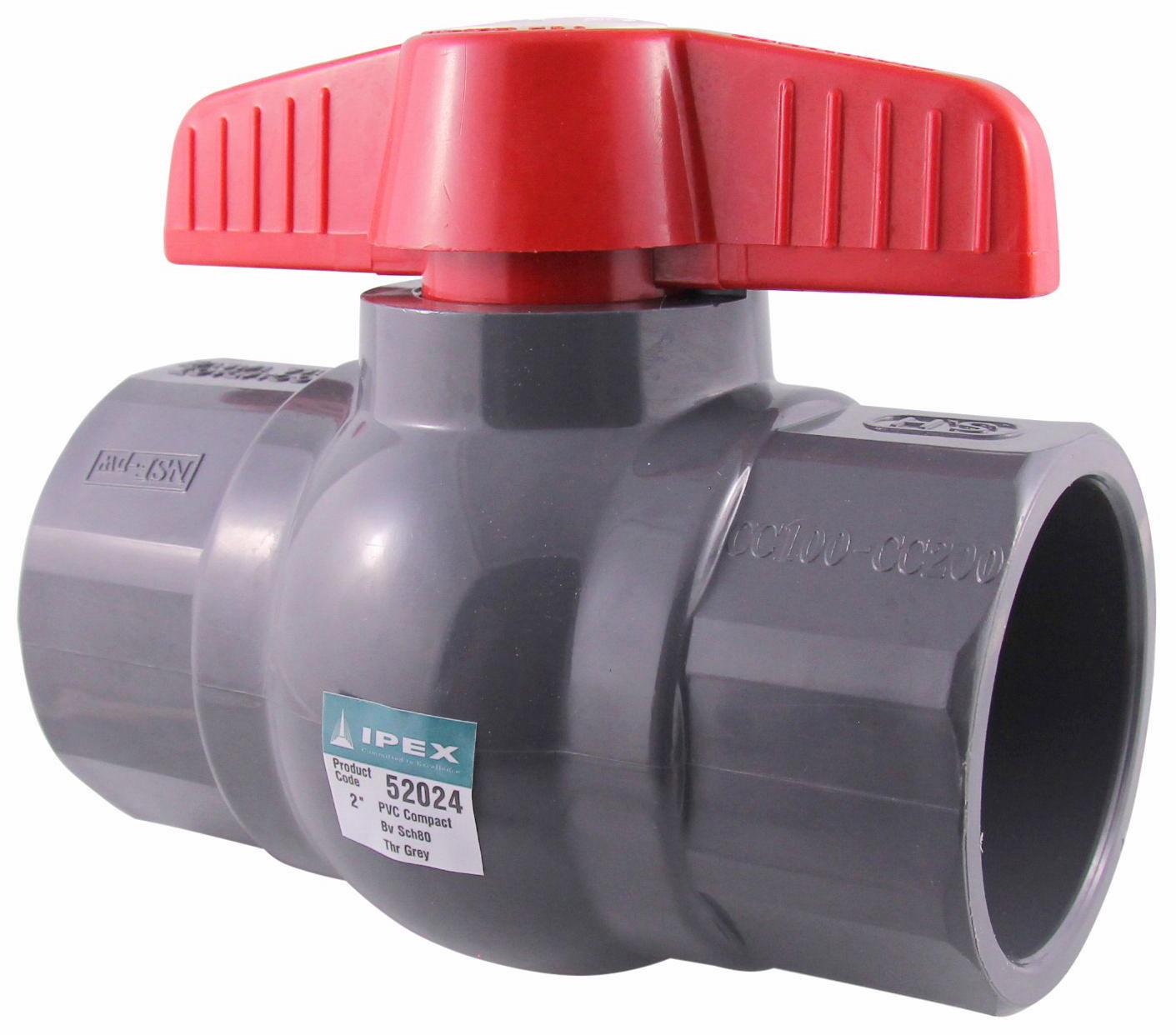

Ipex 052024 2 inches Mp Cbv Pvc Xirtec140 Ball Valve Sch80

Product Description

The IPEX 052024 ball valve with EPDM seals and PTFE seats is suited for plumbing and industrial applications where a compact, inexpensive on/off valve is required. This valve is made from Schedule 80 grey PVC and features socket connections. Rated up to 150 psi at 73 degree F and available in sizes 1/2" to 2".

• Inexpensive on/off valve
• Can be used for a variety of plumbing and industrial applications
• Compact size for easier installation

Product Highlights

The IPEX 052024 ball valve is compact, inexpensive, and suitable for various plumbing and industrial applications.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052024
• Country of Origin: Taiwan

Technical Specifications

• Connection Size: 2" x 2"
• Connection Type: Hub x Hub
• Colour/Finish Category: Greys
• Colour/Finish Name: Grey
• End Connection: Socket
• End Connection 1: Socket
• End Connection 2: Socket
• Material Type: PVC
• Maximum Temperature: 73
• Schedule: 80
• Style Name: Xirtec MP Series
• Valve Seat Material: PTFE
• Valve Size: 2 in.
• Valve Type: Compact Ball Valve
• Product Type: Ball Valves
• Valve Body Material: Plastic
• Pressure - High: 150 psi
• Material: Plastic;Rubber
• Size: 2 in.
• Colour: Grey
• Style: Ball Valve
• Pipe Size: 2 in
• Hose I.D.: 2 in
• Ball Valve Product Group: Ball Valve
• Valve Basic Body Material: PVC
• Item: Valve
• Type: Ball Valve
• Body Material: PVC
• Max. Pressure: 150 psi
• Max. Inlet Pressure: 150 psi
• Tube Size: 2 in
• For Hose I.D.: 2 in
• Valve Structure: Ball Valve
• Body Seal Material: EPDM
• Dangerous Goods: No
