Ipex 052019 1-1/2 inches MP CBV PVC EPDM Socket SCH-80 Grey Xirtec-140

Product Description

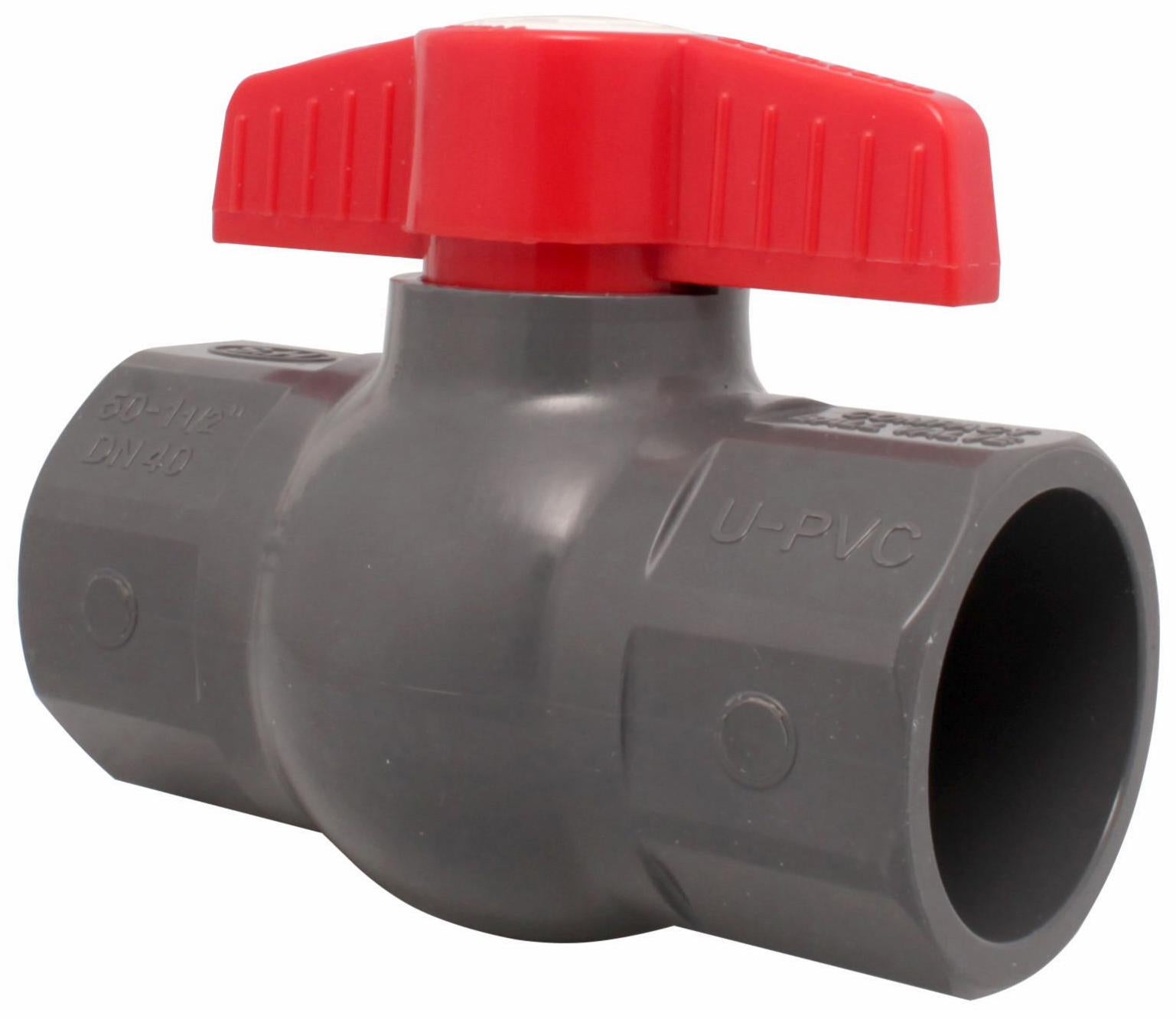

The IPEX 052019 is a compact ball valve with EPDM seals and PTFE seats, ideally suited for plumbing and industrial applications. This Schedule 80 grey PVC valve features socket connections. It is rated up to 150 psi at 73 degrees F.

• Inexpensive on/off valve
• Can be used for a variety of plumbing and industrial applications
• Compact size for easier installation

Product Highlights

Compact, inexpensive on/off valve made from Schedule 80 grey PVC with socket connections, EPDM seals, and PTFE seats.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052019
• Country of Origin: Taiwan

Technical Specifications

• Connection Size: 1-1/2" x 1-1/2"
• Connection Type: Socket
• Colour: Grey
• End Connection: Socket
• End Connection 1: Socket
• End Connection 2: Socket
• Material Type: PVC
• Maximum Temperature: 73
• Schedule: 80
• Style Name: Xirtec MP Series
• Valve Seat Material: PTFE
• Valve Size: 1-1/2 in.
• Valve Type: Compact Ball Valve
• Product Type: Ball Valves
• Valve Body Material: Plastic
• Pressure - High: 150 psi
• Material: Plastic;Rubber
• Size: 1-1/2 in
• Pipe Size: 1 1/2 in
• Hose I.D.: 1 1/2 in
• Ball Valve Product Group: Ball Valve
• Valve Basic Body Material: PVC
• Item: Valve
• Body Material: PVC
• Max. Pressure: 150 psi
• Max. Inlet Pressure: 150 psi
• Tube Size: 1 1/2 in
• For Hose I.D.: 1 1/2 in
• Valve Structure: Ball Valve
• Body Seal Material: EPDM
• Dangerous Goods: No
