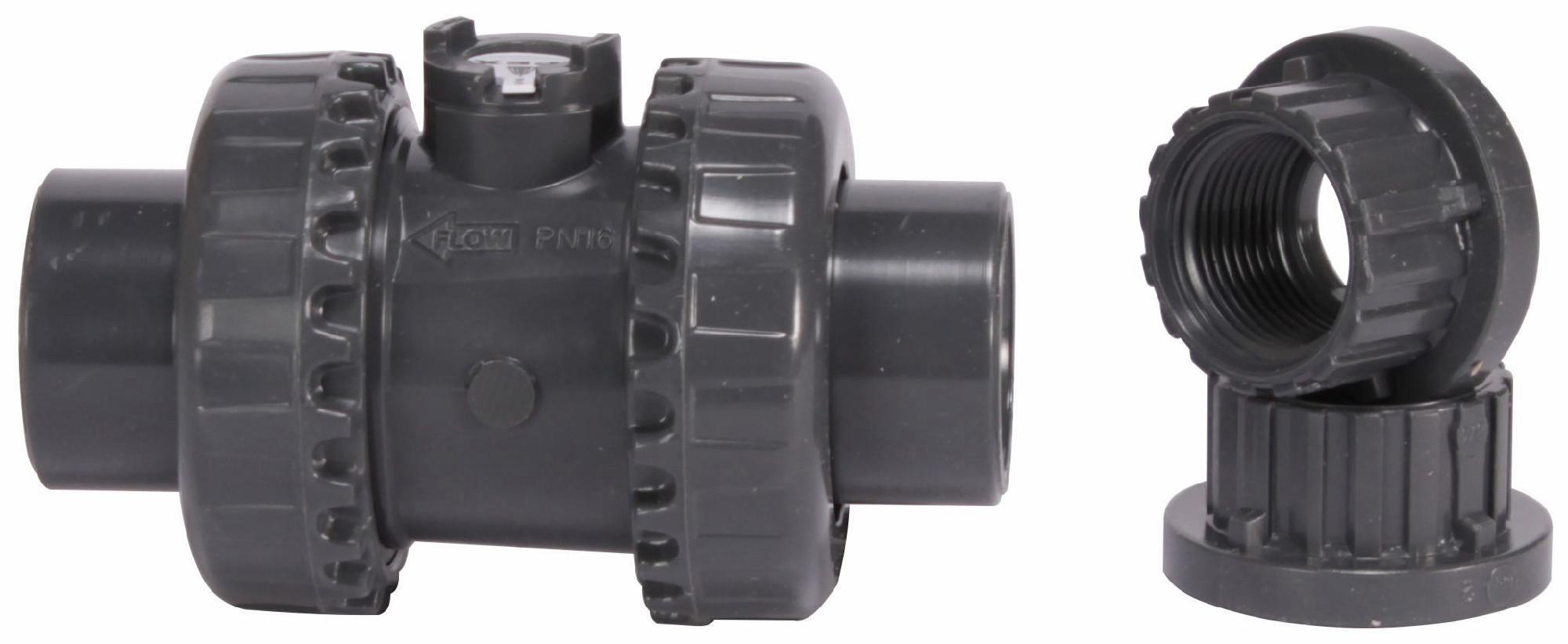

Ipex 052018 True Union PVC S/T Ball Check Valve 2 inches Easyfit Xirtec140

Product Description

The IPEX 052018 SXE is a complement to the VXE and VEE ball valve product lines. A true union design allows for simple maintenance. The EasyFit multifunction handle can be used as a tool for ball seal carrier adjustment, and for tightening union nuts precisely. The internal design is optimized for maximum flow and minimum turbulence.

• Very little back pressure to seal
• Suitable for vertical and horizontal installations
• Rated up to 232 psi at 73 Degrees F and available in sizes 1/2" to 4"

Product Highlights

Prevents back-flow of process media. Features socket and threaded connections. Made from PVC and uses EPDM seals.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052018
• Country of Origin: Italy

Technical Specifications

• Connection Size: 2" x 2"
• Connection Type: FPT x Hub
• Material: PVC
• Colour/Finish Category: Greys
• Colour/Finish Name: Grey
• End Connection: Socket x Threaded
• End Connection 1: Socket
• End Connection 2: Threaded
• Installation Type: Horizontal;Vertical
• Material Type: PVC
• Maximum Temperature: 73 deg F
• Pressure - Maximum: 232 psi
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
• Style Name: Xirtec SXE Series
• Valve Operator: True Union
• Valve Size: 2 in.
• Valve Type: Check Valve
• Valve Body Style: True Union
• Valve Seat Material: EPDM
• Size: 2 in.
• Series: SXE
• Pressure: 232 psi
• Media: Water
• Body: PVC
• Ball: PVC
• Seal Softgoods: EPDM
• Temperature: 73 deg F
• Cv: 93.2
• Standard/Approvals: ASTM D1784, ANSI B1.20.1
• Brand: IPEX
• Product Type: Valves
