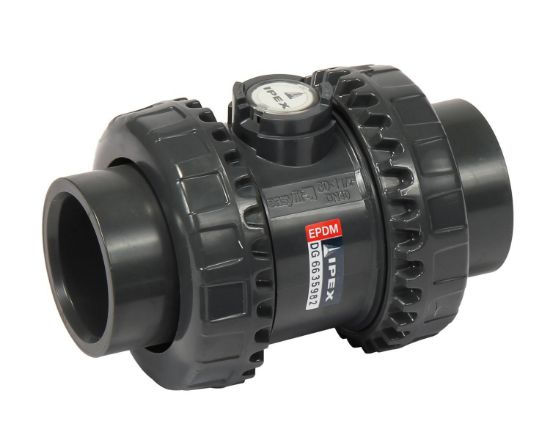

Ipex 052017 Xirtec SXE Series 1-1/2 in. Check Valve

Product Description

The IPEX 052017 Xirtec SXE Series is a complement to the VXE and VEE ball valve product lines. A true union design allows for simple maintenance. The internal design is optimized for maximum flow and minimum turbulence, preventing ball sticking and chatter. Requires just a few psi of back pressure for positive shutoff in both vertical and horizontal installations.

• Rated up to 232 psi at 73 Degrees F and available in sizes 1/2 in. to 4 in.
• Prevents back-flow of process media
• Very little back pressure to seal

Product Highlights

The IPEX Xirtec SXE series check valve is suitable for industrial, OEM and water service applications. It is made from PVC and uses EPDM seals in combination with its socket and threaded connections.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052017
• Country of Origin: Italy

Technical Specifications

• End Connection: Socket x Threaded
• End Connection 1: Socket
• End Connection 2: Threaded
• Installation Type: Horizontal;Vertical
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - Maximum: 232 psi
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
• Style Name: Xirtec SXE Series
• Valve Size: 1-1/2 in.
• Valve Type: Check Valve
• Valve Seat Material: EPDM
• Material: Plastic;Rubber
• Size: 1-1/2 in.
• Series: SXE
• Media: Water
• Body Material: PVC
• Ball Material: PVC
• Seal Material: EPDM, FPM
• Cv: 64.4
• Standard/Approvals: ASTM D1784, ANSI B1.20.1
