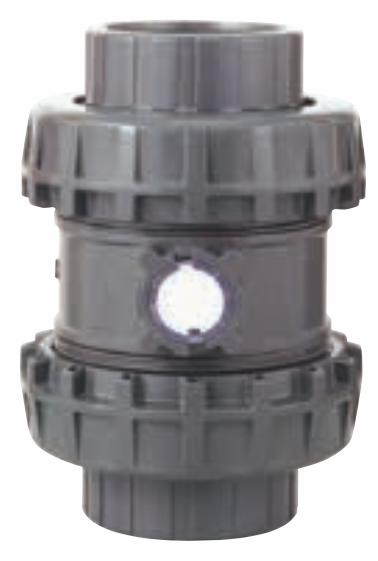

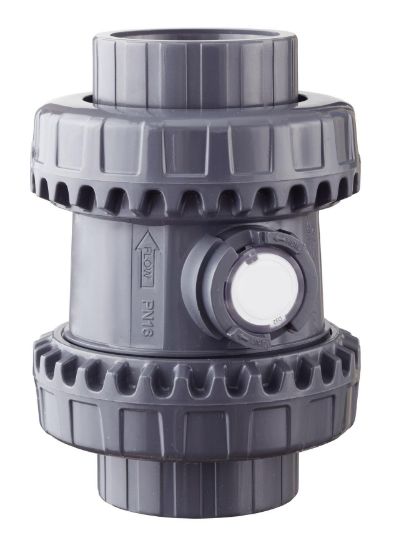

Ipex 052016 1-1/4 inches True Union PVC S/T Ball Check Valve Easyfit Xirtec140

Product Description

The IPEX 052016 SXE is a complement to the VXE and VEE ball valve product lines, with many of the same features providing trouble free service for industrial, OEM and water service applications. A true union design allows for simple maintenance. The internal design is optimized for maximum flow and minimum turbulence. Just a few psi of back pressure for positive shutoff in both vertical and horizontal installations.

• Very little back pressure to seal
• Suitable for vertical and horizontal installations
• Rated up to 232 psi at 73 Degrees F and available in sizes 1/2" to 4"

Product Highlights

The IPEX check valve prevents back-flow of process media. It is made from PVC and uses EPDM seals in combination with its socket and threaded connections.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052016
• Country of Origin: Italy

Technical Specifications

• Connection Size: 1-1/4" x 1-1/4"
• Connection Type: FPT x Hub
• End Connection: Socket x Threaded
• End Connection 1: Socket
• End Connection 2: Threaded
• Installation Type: Horizontal;Vertical
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - Maximum: 232 psi
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
• Style Name: Xirtec SXE Series
• Valve Size: 1-1/4 in.
• Valve Type: Check Valve
• Valve Seat Material: EPDM
• Material: Plastic;Rubber
• Size: 1-1/4 in.
• Application: NFPA Light Hazard applications;High buildings, apartments/hotels;Schools/institutions;Single-family residences
• Product Type: Check Valves
• Height: 3-43/50 in.
• Length: 7-7/25 in.
• Width: 4-7/8 in.
