Ipex 052015 1 inches Sxe True Union Ball Check Valve Pvc Epdm Socket/Thread Easyfit Xirtec-140

Product Description

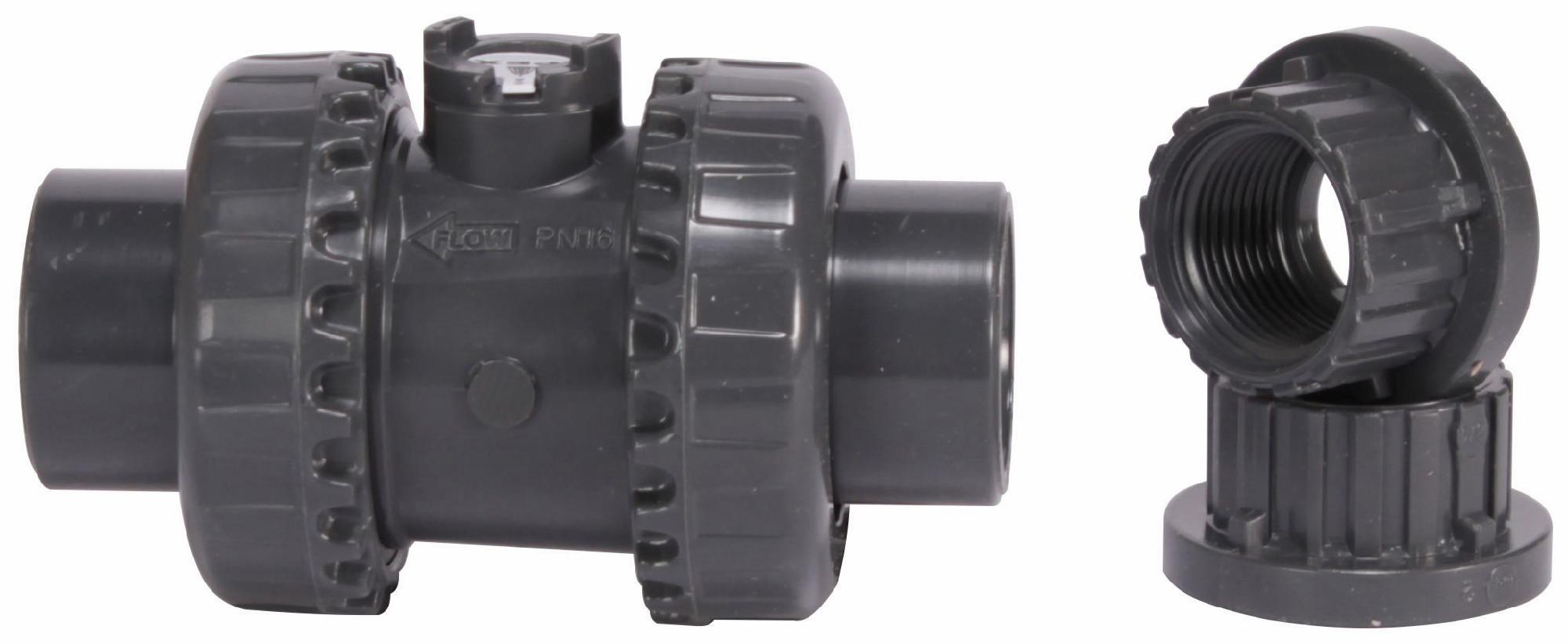

The IPEX 052015 1" SXE True Union Ball Check Valve PVC EPDM Socket/Thread Easyfit Xirtec-140 is designed for industrial, OEM, and water service applications. Its true union design allows for simple maintenance. The internal design is optimized for maximum flow and minimum turbulence, preventing ball sticking and chatter.

• Very little back pressure to seal
• Suitable for vertical and horizontal installations
• Rated up to 232 psi at 73 Degrees F and available in sizes 1/2" to 4"

Product Highlights

This check valve prevents back-flow of process media and features an EasyFit multifunction handle.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052015
• Country of Origin: Italy

Technical Specifications

• Country of Origin: Italy
• MPN: 052015
• Brand: IPEX
• UPC: 622454412095
• Connection Size: 1" x 1"
• Connection Type: FPT x Hub
• Material: PVC
• Series: SXE
• End Connection: Socket / Threaded
• Size: 1 Inch
• Pressure: 232 psi
• Media: Water
• Body Material: PVC
• Ball Material: PVC
• Seal Material: EPDM, FPM
• Temperature: 73 deg F
• Cv: 30
• Standard/Approvals: ASTM D1784, ANSI B1.20.1
• End Connection 1: Socket
• End Connection 2: Threaded
• Installation Type: Horizontal;Vertical
• Material Type: PVC
• Maximum Temperature: 73
• Valve Operator: True Union
• Valve Size: 1 in.
• Valve Type: Check Valve
• Application: NFPA Light Hazard applications;High buildings, apartments/hotels;Schools/institutions;Single-family residences
• Origin: Italy
• Product Type: Check Valves
• Valve Body Material: Plastic
• Valve Body Style: True Union
• Valve Seat Material: EPDM
• Specifications - ANSI: ANSI B1.20.1
• Specifications - ASTM: ASTM D-1784
• Specifications - NSF: NSF 61
• Specifications - NSF Certified: Yes
