Ipex 052013 1/2 inches sxe true union ball check valve pvc epdm socket/thread easyfit xirtec-140

Product Description

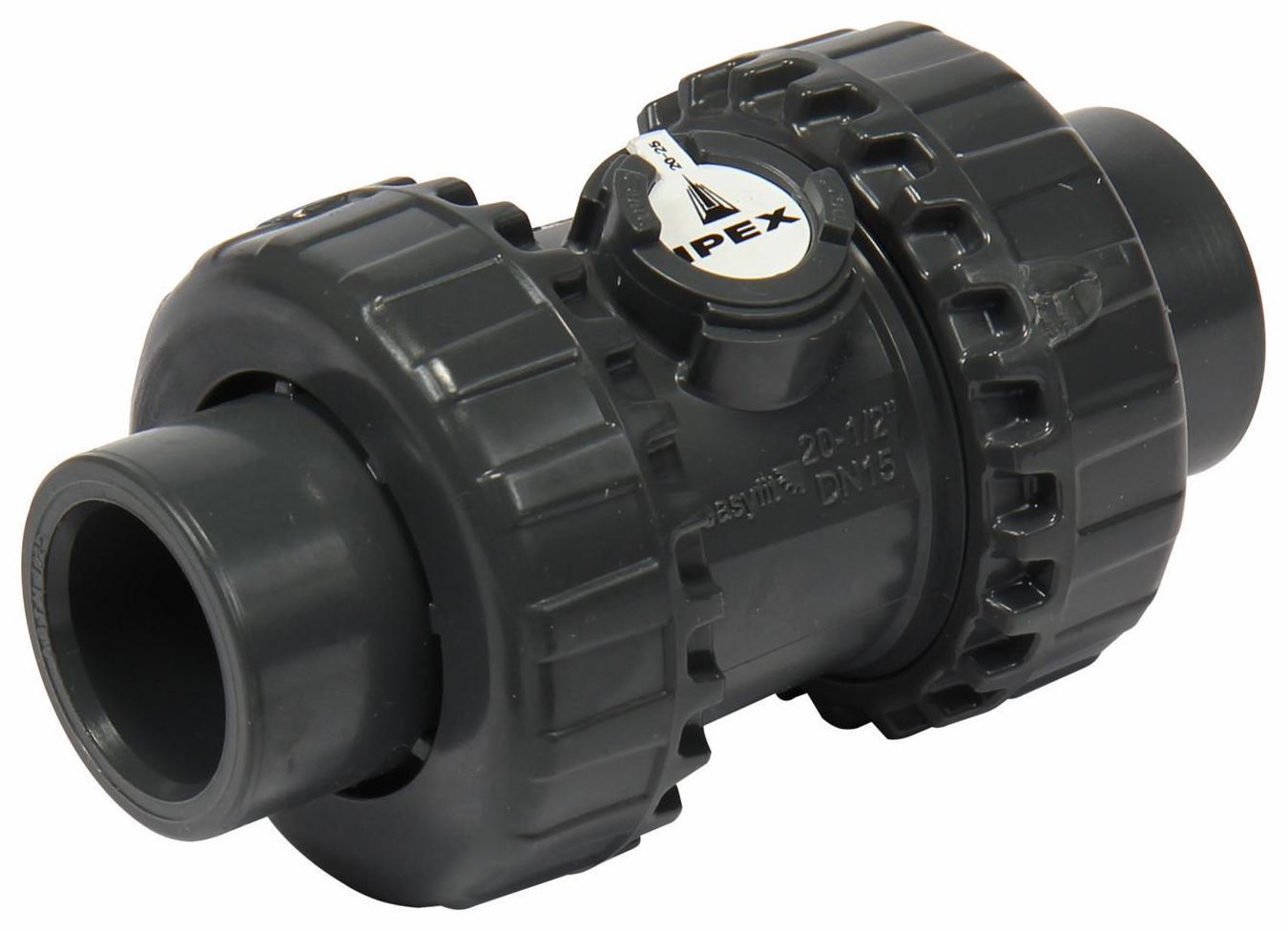

The IPEX 052013 is a 1/2" SXE True Union Ball Check Valve PVC EPDM Socket/Thread Easyfit Xirtec-140. It prevents back-flow of process media and is suitable for vertical and horizontal installations. The true union design allows for simple maintenance. Internal design is optimized for maximum flow and minimum turbulence.

• Very little back pressure to seal
• Suitable for vertical and horizontal installations
• Rated up to 232 psi at 73 Degrees F and available in sizes 1/2" to 4"

Product Highlights

The IPEX SXE ball check valve provides trouble free service for industrial, OEM and water service applications. It features an optimized profile design to reduce pressure drop and improve the Cv value.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052013

Technical Specifications

• Brand: Ipex
• MPN: 052013
• Connection Size: 1/2" x 1/2"
• Connection Type: FPT x Hub
• Material: PVC
• Series: SXE
• End Connection: Socket / Threaded
• Pressure: 232 psi
• Media: Water
• Body Material: PVC
• Ball Material: PVC
• Seal Softgoods: EPDM, FPM
• Temperature: 73 deg F
• Cv: 10.6
• Standard/Approvals: ASTM D1784, ANSI B1.20.1
