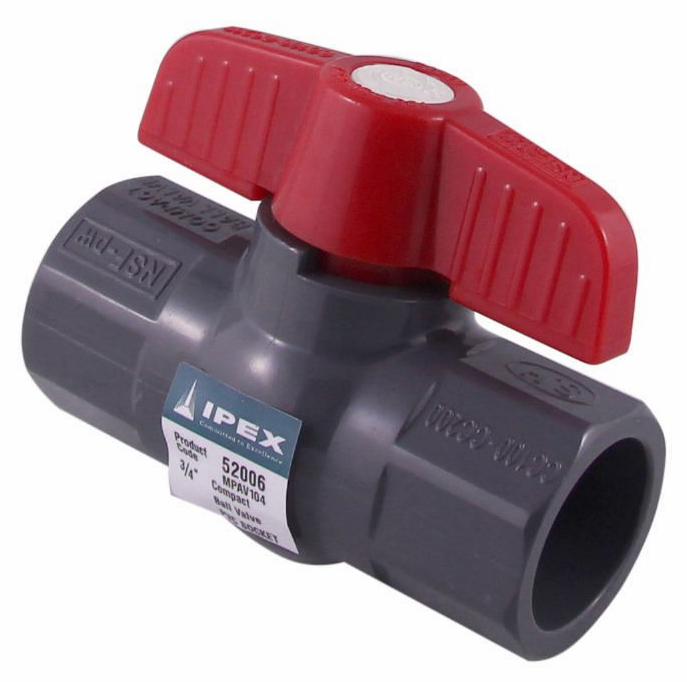

Ipex 052006 3/4 inches Mp Cbv Pvc Epdm Socket Sch-80 Grey Xirtec-140

Product Description

The IPEX 052006 is a compact ball valve with EPDM seals and PTFE seats, ideally suited for plumbing and industrial applications. This Schedule 80 grey PVC valve features socket connections and provides an inexpensive on/off valve solution.

• Inexpensive on/off valve
• Can be used for a variety of plumbing and industrial applications
• Compact size for easier installation

Product Highlights

Compact, cost-effective on/off valve for diverse plumbing and industrial uses.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 052006
• Country of Origin: Taiwan

Technical Specifications

• Connection Size: 3/4" x 3/4"
• Connection Type: Hub x Hub
• Colour/Finish Category: Greys
• Colour/Finish Name: Grey
• End Connection: Socket
• End Connection 1: Socket
• End Connection 2: Socket
• Material Type: PVC
• Maximum Temperature: 73
• Pressure - High: 150 psi
• Schedule: 80
• Style Name: Xirtec MP Series
• Valve Seat Material: PTFE
• Valve Size: 3/4 in.
• Valve Type: Compact Ball Valve
• Valve Body Material: Plastic
• Product Type: Ball Valves
• Material: Plastic;Rubber
• Size: 3/4 in.
