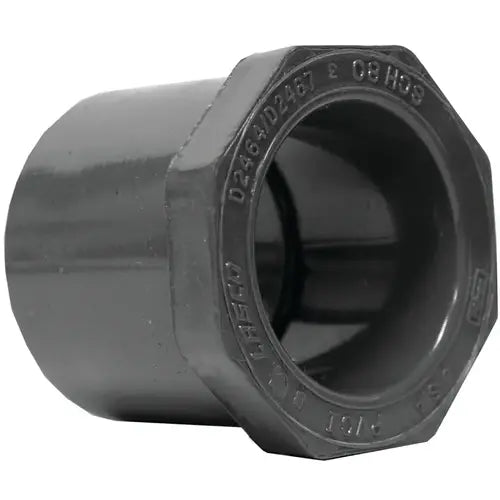

Ipex 036613 reducer bushing 1-1/2 inches x 1-1/4 inches

Product Description

The IPEX 036613 reducer bushing is designed for connecting pipes of different sizes. This PVC Schedule 80 reducer bushing features a spigot x socket connection, with dimensions of 1-1/2" x 1-1/4". It is suitable for use in chemical processes and other industrial applications.

• Lower installation costs due to easy handling
• Exceptional chemical resistance
• Potable water approved

Product Highlights

This reducer bushing offers a reliable solution for transitioning between different pipe sizes while maintaining chemical resistance and structural integrity.

Product Information

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 036613

Technical Specifications

• Type: Reducer Bushing
• Connection Type: Spigot - Socket
• Size 1 (in): 1 1/2
• Size 2 (in): 1 1/4
• Material: PVC
• Schedule: Schedule 80
• Standards/Certifications: Marine Type Approval;ASTM D2467;NSF pw-G
• Connection Size 1: 1-1/2 in
• Connection Size 2: 1-1/4 in
• Connection Type 1: Spigot
• Connection Type 2: Socket
• Fitting Type: Bushing
• Material Construction: PVC
• Pressure Rating: 470 psi
• Schedule Rating: SCH 80
• Temperature Rating: 140 deg F
• Nominal Size: 1-1/2 x 1-1/4"
