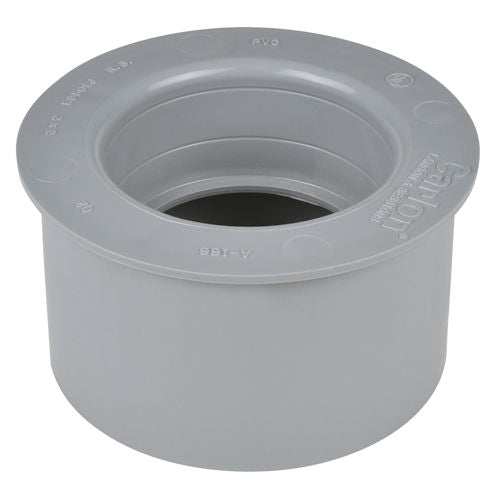

Ipex 034012prb Pvc Sch40 Reducer Bushing 3/4x1/2 in

Product Description

The IPEX 034012prb is a Schedule 40 PVC conduit reducer bushing designed to transition between a 3/4-inch bell end and a 1/2-inch spigot end in electrical conduit runs. Made from non-metallic PVC material, this fitting provides a durable, corrosion-resistant connection suited for both indoor and outdoor conduit installations. Electricians use this bushing to reduce conduit size within a raceway system without requiring additional adapters. Its bell-to-spigot configuration allows direct solvent-weld joining to standard Schedule 40 PVC conduit and fittings.

This reducer bushing is intended for use in Schedule 40 PVC electrical conduit systems where a 3/4-inch to 1/2-inch size reduction is needed. Typical applications include residential and light commercial wiring installations where conduit routing requires a step-down between conduit sizes. It is suited for direct burial, exposed, and concealed conduit runs where PVC conduit is code-approved.

Key Features

• Bell-to-spigot configuration for direct inline conduit size reduction
• Schedule 40 PVC construction for corrosion resistance and long service life
• Non-metallic material eliminates rust and galvanic corrosion concerns
• Solvent-weld compatible with standard Schedule 40 PVC conduit and fittings
• Transitions 3/4-inch conduit down to 1/2-inch in a single fitting

Compatibility

Designed as an OEM-style replacement fitting compatible with Schedule 40 PVC electrical conduit systems using 3/4-inch and 1/2-inch nominal conduit sizes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for PVC conduit systems. De-energize all circuits in the affected raceway before beginning work. Use approved PVC conduit solvent cement and primer for a proper watertight bond on the bell and spigot joint. Allow full cure time per the cement manufacturer's instructions before pulling wire or restoring power.

Technical Specifications

• Material: PVC Non-Metal
• Type: Bell to Spigot Reducer Bushing
• Schedule: Schedule 40
• Inlet Size: 3/4 inches (bell)
• Outlet Size: 1/2 inches (spigot)
• UPC: 98006006221

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 034012prb
