Ipex 012plb Pvc Type Lb Conduit Body 1/2 Inch

Product Description

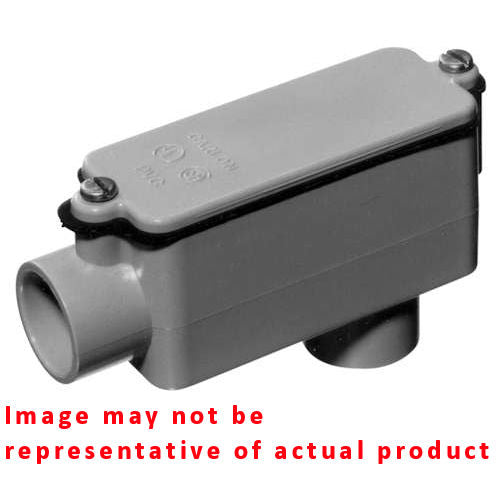

The IPEX 012plb is a 1/2 inch PVC Type LB conduit body with a rectangular form and removable cover. It is used in electrical conduit systems to provide a pull point and directional change in conduit runs. Made from PVC, it resists corrosion and moisture, making it well suited for damp and wet locations. With an internal capacity of 4.3 cubic inches, it meets the fill requirements for standard low-voltage and branch-circuit wiring. Licensed electricians install this fitting as part of rigid or schedule 40 PVC conduit systems in residential and light commercial applications.

This conduit body is designed for use in 1/2 inch PVC conduit systems where a 90-degree pull or direction change is needed. The LB style enters from the back and exits from the bottom, which makes it a standard choice for transitions from wall-mounted conduit into a panel, junction, or underground run. It is commonly installed in both indoor and outdoor electrical raceways where non-metallic conduit is code-appropriate or required.

Key Features

• PVC construction provides corrosion resistance for damp and wet location use
• LB style allows 90-degree directional change in conduit runs
• 4.3 cubic inch internal capacity supports standard conductor fill requirements
• Rectangular body with removable cover for wire pulling and future access
• Trade size 1/2 inch fits standard 1/2 inch PVC conduit systems

Compatibility

Designed as an OEM-style fitting for use with 1/2 inch schedule 40 or schedule 80 PVC conduit systems in residential and light commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for conduit body fill and support. De-energize all circuits before opening or working near any conduit body in an existing system. PVC solvent cement appropriate for the conduit schedule should be used to secure the fitting to conduit entries. The removable cover must remain accessible after installation per code requirements.

Technical Specifications

• Trade Size: 1/2 inch
• Material: PVC
• Style: LB
• Type: Rectangular with Cover
• Internal Capacity: 4.3 cubic inches

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 012plb
