Io Hvac Controls ZPA-SPS Static Pressure Sensor .08 inches-1.2 inchesWC

Product Description

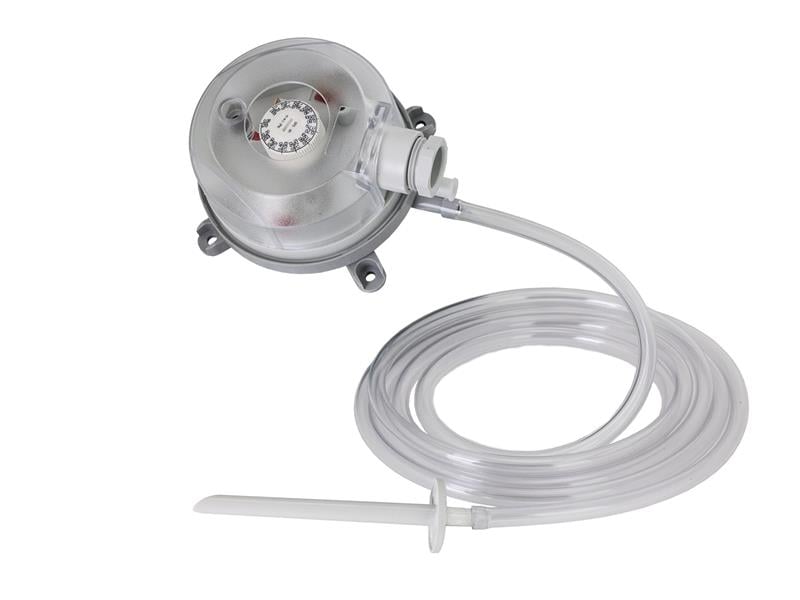

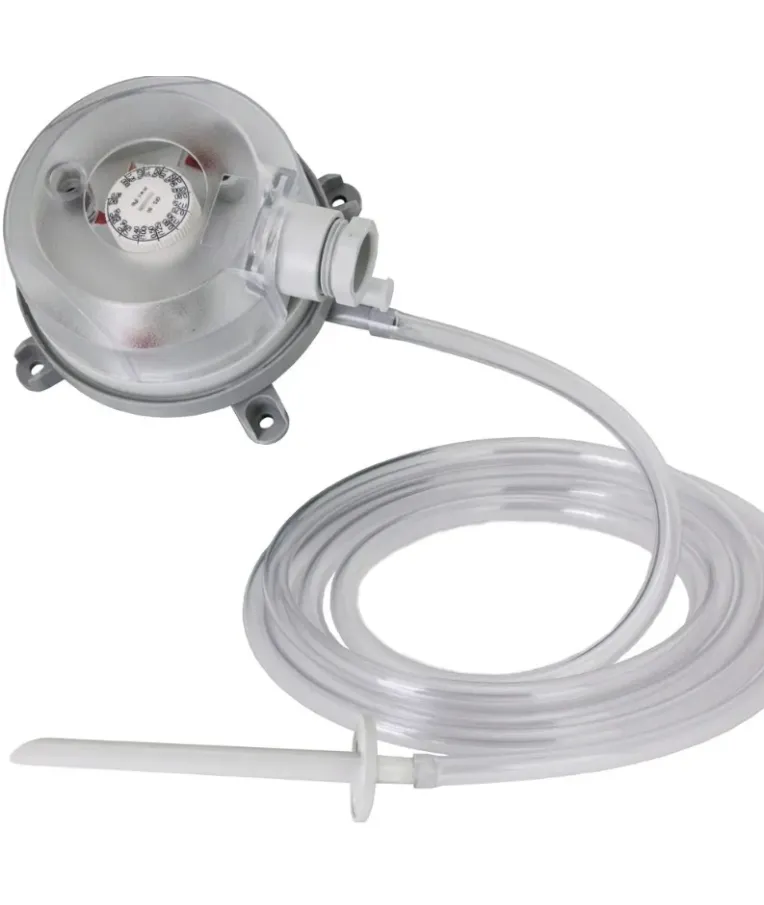

The IO HVAC CONTROLS ZPA-SPS is a static pressure sensor commonly used with iO-ESP bypass-free zone controllers. It is a differential pressure sensor adjustable between .08"-1.2"WC with an integrated SPDT switch. The differential pressure switch housing unit contains a diaphragm and a range adjustment knob with increments.

• Static Pressure Sensor
• Mounting Hardware and Tubing with probe
• Adjustable pressure range is .08"-1.2"WC

Product Highlights

This static pressure sensor is designed for residential applications and includes a pickup tube.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: ZPA-SPS
• Country of Origin: United States

Technical Specifications

• MPN: ZPA-SPS
• Brand: IO HVAC Controls
• Application: Residential
• Length: 4"
• Width: 6"
• Height: 8"
• Operating Temp: -40 F to 150 F
• RH: 5 to 90 percent RH non-condensing
• Part #: ZPA-SPS
• Category: Position Sensor/Transmitter/Monitor
