- On-board adjustable high and low limits and balance points
- Staging by zone thermostat or built-in adjustable upstage timer
- 2nd stage capacity control option
- Purge cycle option
- Works with 2 or 3 wire zone dampers
SPECIFICATIONS:
CONSTRUCTION:
- Aluminum enclosure with snap-on panel cover
MOUNTING:
- Snap track with 2 back plate screws
OPERATING TEMPERATURE:
- -40° F to 150° F
OUTDOOR BALANCE POINTS:
- Low Balance Point (0° F to 50° F)
- High Balance Point (55° F to 70° F)
ADJUSTABLE DISCHARGE AIR LIMITS:
- Low Limit (40° F to 58° F)
- High Limit (100° F to 175° F)
PURGE CYCLE:
- Off or 1 minute
DIMENSIONS:
- 13.50” Height x 11.00” Width x 2.00” Depth
FAN MODE:
- All zones or by zone thermostat

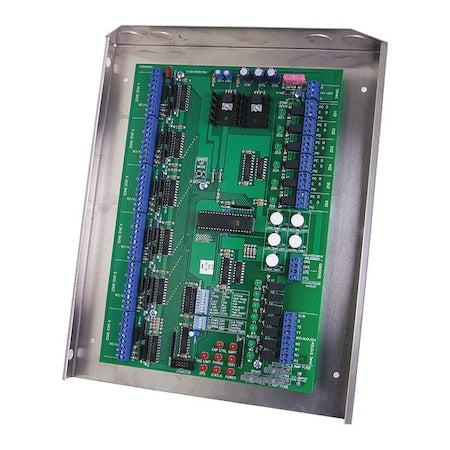

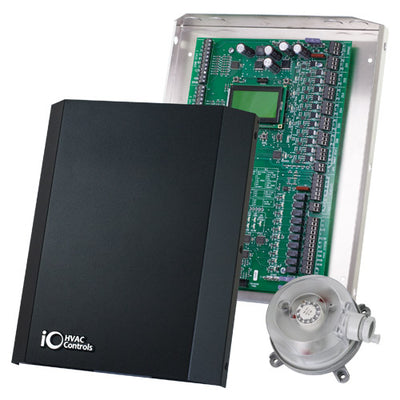

ZP SeriesThe is a 6-zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump, or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.
