IO HVAC CONTROLS ZP4-ESP-FAV 4-Zone ESP Panel with Ventilation Control

Product Description

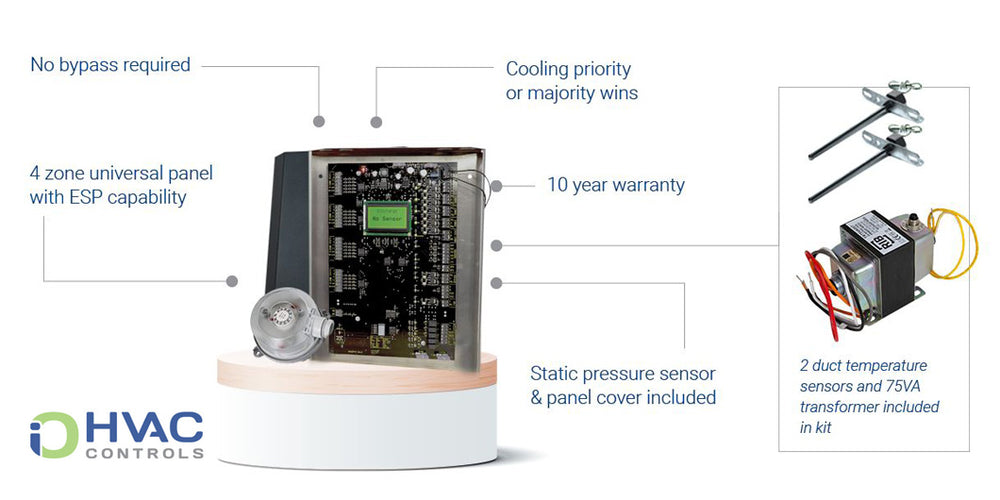

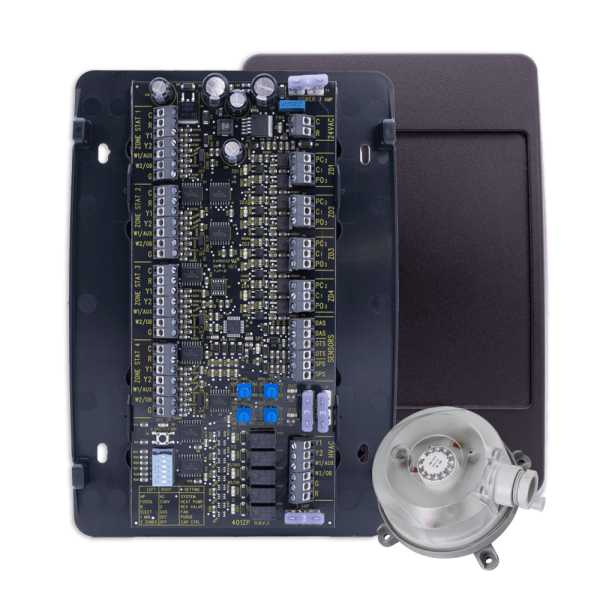

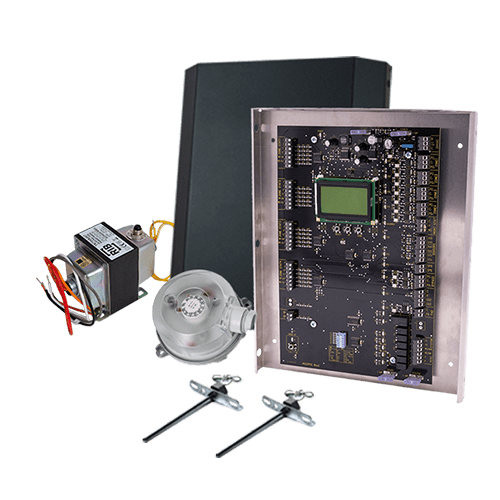

The IO HVAC CONTROLS ZP4-ESP-FAV is a four-zone panel that employs ESP technology to remove the need for a bypass damper. This panel supports three heating stages and two cooling stages. It integrates a static pressure sensor to track the system's pressure levels. When the pressure surpasses the designated setpoint, the panel activates non-calling zone dampers to alleviate excessive pressure. Additionally, it manages fresh air ventilation using either an internal timer or an external demand signal. The panel supports various systems including single-stage, multi-stage, heat pump, and dual fuel equipment.

• Eliminates the necessity for bypass dampers with ESP technology.
• Monitors system pressure using a static pressure sensor.
• Controls ventilation based on time or demand signals.

Product Highlights

This panel enhances control and efficiency in HVAC systems by managing pressure and ventilation effectively.

Product Information

Standard Information

• Warranty: 10 Years
• Zones: 4

Technical Specifications

• Brand: IO HVAC CONTROLS
• Model: ZP4-ESP-FAV
• System Compatibility: Single-stage, multi-stage, heat pump, dual fuel
• Pressure Monitoring: Static pressure sensor included
• Ventilation Control: Timed and demand options available
