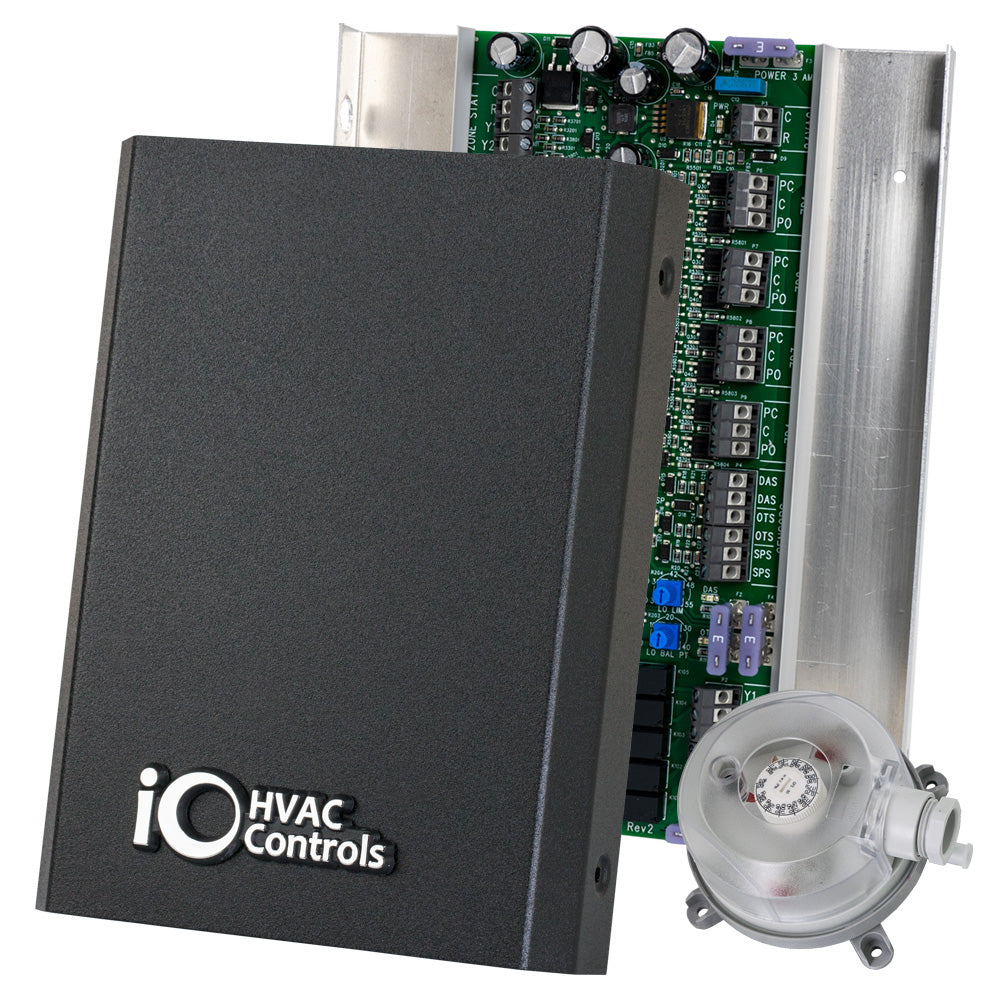

- 4-Zone Universal (3H/2C) Zone Panel with built in ESP functionality includes pressure sensor.
- 10 years warranty.
Features and Benefits:
- 4 zone universal panel with ESP capability
- Smallest universal panel offered by iO
- Smallest universal panel offered by iO
- Auto changeover
- First call priority with time share
- 2 zone, 2nd stage capacity control
- 2 zone, 2nd stage capacity control
- Adjustable high and low limits
- Adjustable high and low balance points
- Easy switch configuration
- Fused protected inputs and outputs
- Works with 2 or 3 wire zone dampers*
SPECIFICATIONS:
CONSTRUCTION:
- Aluminum enclosure with snap-on panel cover
MOUNTING:
- Snap track with 2 back plate screws
OPERATING TEMPERATURE:
- -40° F to 150° F
TIME DELAYS:
- 5 minute changeover
- 3 minute off on high or low limit
- 20 minute time share
DISCHARGE AIR LIMITS:
- Low Limit (30° F to 55° F)
- High Limit (100° F to 180° F)
DIMENSIONS:
- 8.75” Height x 7” Width x 1.5” Depth
