Io Hvac Controls ZP3-HPS-KIT 3-Zone 3H/2C Zone Panel Kit

Product Description

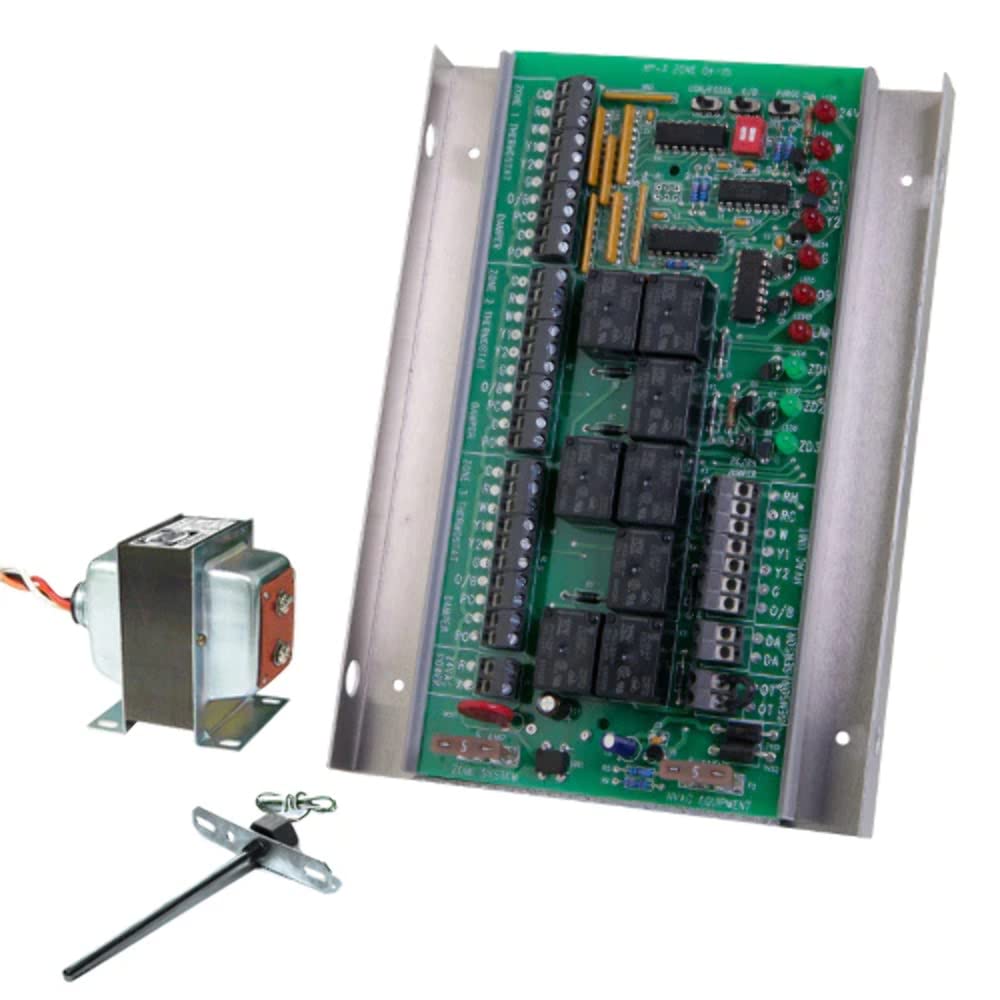

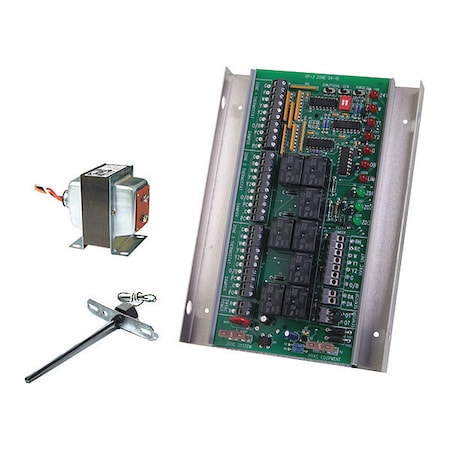

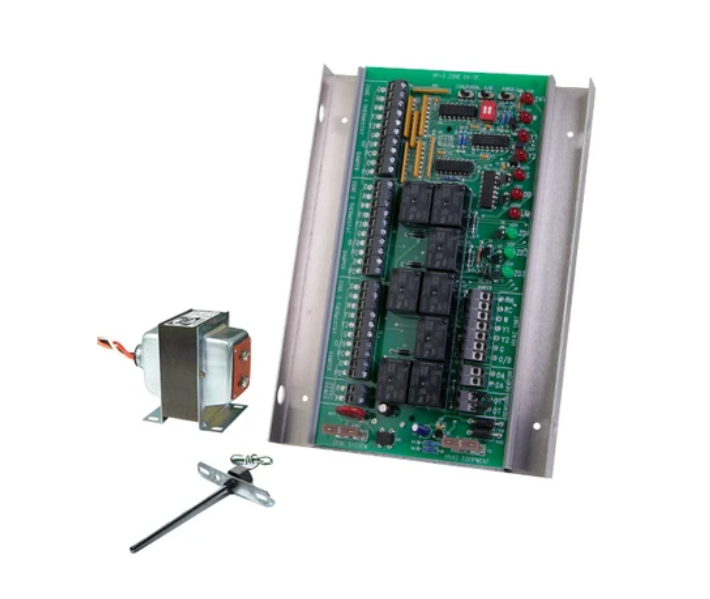

The IO HVAC CONTROLS ZP3-HPS-KIT is a control panel kit for 3-zone, 3 heat / 2 cool systems. Designed for residential or light commercial applications, these forced air zoning systems represent a contractor-friendly solution. The kit includes a panel, duct temperature sensor, and a 40VA transformer.

• Up to 3 zones
• Up to 3H/2C
• Auto changeover

Product Highlights

Features first call priority with time share, electronic discharge air sensor, and LED status indication. Offers independent fan control by zone and short cycle protection.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: ZP3-HPS-KIT
• Country of Origin: United States

Technical Specifications

• Brand: iO HVAC Controls
• MPN: ZP3-HPS-KIT
• Product Type: CONTROLLER
• Item [Specifications]: Zone Panel Kit,3 Zone,3H/2C
• Country of Origin (subject to change) [Specifications]: United States
• Application: Residential
• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Construction: Aluminum Back Plate with Mounting Holes
• Model: ZP3-HPS-KIT
• Custom Bundle: No
• UPC: 840119900491
• Country of Origin: United States
• Part #: ZP3-HPS-KIT
• Category: HVAC Control System Board
