Io Hvac Controls ZP3-HPS-ESP-KIT 3-Zone 3H/2C Control Panel Kit - Multi Tap w/ Esp

Product Description

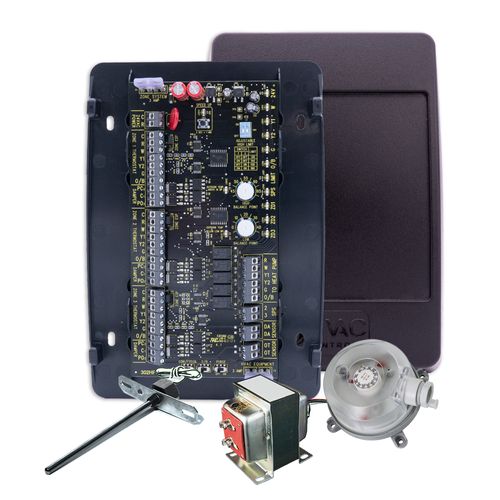

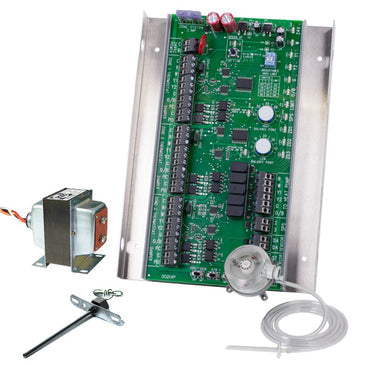

The IO HVAC CONTROLS ZP3-HPS-ESP-KIT is a 3-Zone 3H/2C Control Panel Kit - Multi Tap w/ Esp. Designed for residential applications, this kit includes a panel, static pressure sensor, duct temperature sensor, and a 40VA transformer. It is designed to fit 3 zone applications for heat pump or dual fuel systems in residential and light commercial applications.

• Built-in static pressure control eliminates the need for a bypass damper
• Auto changeover
• First call priority with time share

Product Highlights

This control panel kit features LED status indication, independent fan control by zone, and short cycle protection. It works with 2 or 3 wire zone dampers and has adjustable high limit.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: ZP3-HPS-ESP-KIT-MT

Technical Specifications

• Application: Residential
• Construction: Aluminum back plate with mounting holes
• Height: 1.5"
• Length: 8"
• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Width: 6"
• Number of Zones: 3
• Material: Aluminum
• Temperature Rating: -40 to 150 deg F
• Item Number: ZP3-HPS-ESP-KIT
• Brand: iO HVAC Controls
• Type: Zoning Panel
