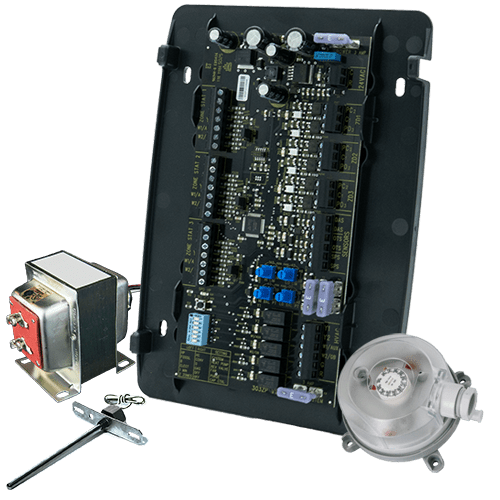

Io Hvac Controls ZP3-ESP-KIT 3-zone Zone Control Panel

Product Description

The IO HVAC CONTROLS ZP3-ESP-KIT is a 3-zone ESP zone control panel kit designed to manage airflow and temperature distribution across multiple zones in a ducted HVAC system. The kit provides the control hardware needed to divide a single air handler or furnace into three independently conditioned zones, improving comfort and efficiency. Measuring 9.5 x 4.25 x 12.75 inches and weighing 4.25 pounds, the panel is compact enough for standard equipment closets and mechanical rooms. Licensed HVAC technicians install this type of control system during new zoning installations or when upgrading an existing single-zone system to multi-zone operation.

The ZP3-ESP-KIT is suited for residential and light commercial ducted forced-air systems where three separate zones of temperature control are required. Typical applications include multi-story homes, large single-floor layouts, or buildings where occupants require independent thermostat control in distinct areas. The kit centralizes zone management at a single panel, simplifying wiring and reducing the number of individual components needed at the air handler or furnace cabinet.

Key Features

• Controls up to 3 independent zones from a single panel
• ESP (Electronic Static Pressure) compatible design for variable-speed and multi-speed air handler integration
• Compact enclosure at 9.5 x 4.25 x 12.75 inches fits standard mechanical spaces
• Kit format includes necessary control components for a complete zone control installation
• Lightweight at 4.25 pounds for straightforward mounting and handling

Compatibility

Designed as an OEM-style zone control solution for residential and light commercial ducted forced-air HVAC systems requiring up to 3 zones of independent temperature management.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control wiring and zone damper systems. Shut down power to the air handler, furnace, and all associated equipment at the disconnect and breaker before beginning any wiring work. Follow all applicable local mechanical and electrical codes, including NEC guidelines for low-voltage wiring. Verify damper and thermostat compatibility before completing the installation.

Technical Specifications

• Number of Zones: 3
• Width: 9.5 inches
• Height: 4.25 inches
• Depth: 12.75 inches
• Weight: 4.25 pounds

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: ZP3-ESP-KIT
