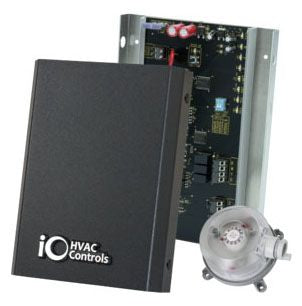

iO HVAC Controls ZP2-HC-ESP Zone Control Panel 1-Stage, 2-Zone 1-Heat/1-Cool No Bypass Required

Product Description

The iO HVAC Controls ZP2-HC-ESP is a zone control panel designed for 1-stage, 2-zone heating and cooling systems. This model offers automatic changeover capabilities without the need for a bypass damper. It features a durable aluminum enclosure with a snap-on cover, ensuring easy access and maintenance.

• Dimensions: 6 inches in width, 1.5 inches in depth, and 8 inches in height.
• Temperature rating from -40 to 150 degrees Fahrenheit.
• Independent fan control and static pressure control module included.

Product Highlights

This zone control panel is suitable for both residential and light commercial applications. It provides great control options and is optimized for efficiency.

Product Information

Standard Information

• Manufacturer: iO HVAC Controls
• UPC: 840119900422

Technical Specifications

• Overall Dimensions: 6 inches width x 1.5 inches depth x 8 inches height
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Application: Residential and Light Commercial
• Features: Independent Fan Control, Static Pressure Control Module, Adjustable High Limit
• Mounting Type: Snap Track with two back plate screws
• Time Delay: 3 minutes off between cooling calls, 3 minutes off on low limit, 20-minute time share
