iO HVAC Controls ZP2-HC-ESP-KIT 2-Zone 1H/1C zone panel with ESP, 40VA transformer, duct temp sensor and pressure sensor


Brand:
    iO HVAC Controls
SKU / MPN:
ZP2-HC-ESP-KIT
Voomi ID:
80758
Price:
$318.26

Available - Ships in 4 - 5 Business Days

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
FULL WARRANTY
FULL WARRANTY If it doesn't work, we'll process the manufacturer's warranty for you.*
FAST SHIPPING
FAST SHIPPING Most parcel orders ship same if in stock and ordered before 2pm ET
100% FIT GUARANTEE
100% FIT GUARANTEE No-cost return option for any part on our site which has the ’100% Fit Guarantee’ icon listed.
EASY RETURNS
EASY RETURNS Convenient 30 day returns.
HAVE A QUESTION? Our friendly team is ready to help!

Product Information

iO HVAC Controls ZP2-HC-ESP-KIT

Control Kit. 2-ZONE SINGLE STAGE ZONE ESP PANEL KIT WITH STATIC PRESSURE SENSOR, DUCT TEMP SENSOR, AND 40VA TRANSFORMER.

The ZP2-HC with ESP forced air zoning systems represent the most contractor-friendly solution today. The ZP2-HC model is designed to fit up to two zone applications for single-stage heat/cool systems in residential and light commercial applications. This zone control system comes with built in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series.

The system works like any standard zone control system with one exception. As zone dampers open and close, the built in ESP static pressure control continuously monitors the system static pressure and if required, sends a signal to zone dampers that are in the closed position to open to a point where the proper static pressure level is maintained. The small amount of air that is allowed to bleed into non-calling zones eliminates air noise and assures proper airflow through the HVAC system preventing coil freeze-up.

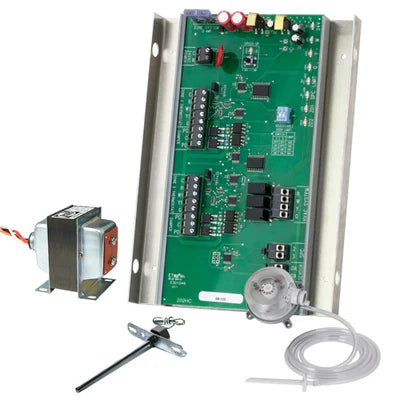

Kit includes:  Panel, static pressure sensor, duct temperature sensor and 40VA transformer

Estimate shipping

What Our Customers Are Saying


Safety Information

PROPOSITION 65 WARNING
By purchasing this item, you are agreeing to have this product installed by a trained technician. The installer or servicer assumes all responsibility for injury or property damage that may result. Refer to your local jurisdiction for installer licencing requirements.
