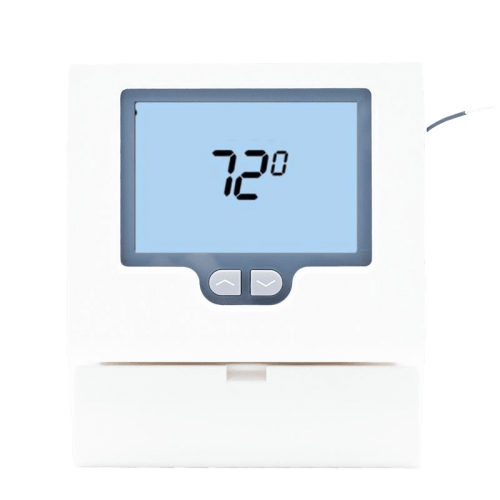

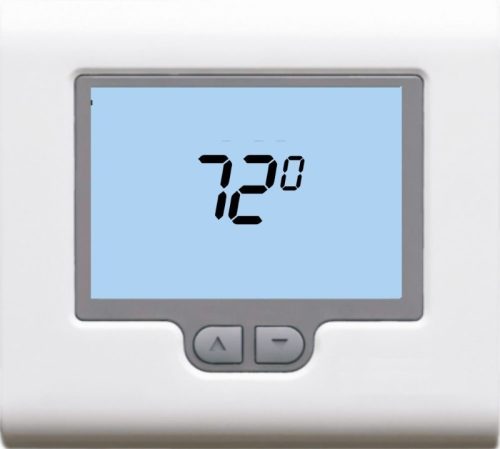

Io Hvac Controls Z-2000-T Digital Thermostat For Z-2000 Zone Panel Or Modulating Zone One

Product Description

The IO HVAC Controls Z-2000-T is a digital thermostat designed for Z-2000 zone panels or Modulating Zone One systems. Configurable for modulating damper actuator or 2-position control, it accurately measures ambient space temperature. Ideal for commercial applications, this thermostat ensures precise climate management within a zone served by a damper or diffuser.

• Designed for Z-2000 zone panels or Modulating Zone One systems
• Configurable for modulating damper actuator or 2-position control
• Accurately measures ambient space temperature

Product Highlights

Digital thermostat for precise climate control in commercial applications. Compatible with Z-2000 and Zone One systems.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: Z-2000-T

Technical Specifications

• Application: Commercial
• Product Type: Thermostat
• Voltage: 24V
• Temperature: 32°F (0°C) Min, 122°F (50°C) Max
• Changeover: Automatic
• Display: Digital
• Power Type: Hardwired
• Stages: Multi, Single
• Touchscreen: No
• Programmable Fan: No
• Vacation Hold: No
• Keypad Lockout: No
• Filter Monitor: No
• Remote Outputs: No
• Terminal W2: No
• Terminal Y2: No
• Terminal G: No
• Terminal O or O/B: No
• Terminal E: No
• Programmability: Non-Programmable
• Terminal Designations: C, R
• Auto Changeover: Yes
• Backlight: Yes
• Set Point Limiting: Yes
• Remote Inputs: Yes
• Terminal R, Rh, or Rc: Yes
• Terminal C or X: Yes
• Terminal W or W1: Yes
• Terminal Y or Y1: Yes
• Input Voltage: 24VAC 50/60 Hz +/- 15%
• Relay Rating: 24VAC @ 1 amp maximum per relay
• Operating Temperature: 32-122 degrees Fahrenheit
• Operating Relative Humidity: 0-95% (non-condensing)
• Temperature Sensors: 10K NTC Type II
• Control Range: 38-96 degrees Fahrenheit
• Brand: iO HVAC Controls
• SKU: Z-2000-T
• Condition: New
• UPC: 840119900392
• Imprinting Available: Yes
