iO HVAC Controls UT-SWM Universal Thermostat Smart Wire Module With 2 to 5 Wire Adapter


Brand:
    iO HVAC Controls
SKU / MPN:
UT-SWM
Voomi ID:
80790
Price:
$117.62

Available - Ships in 4 - 5 Business Days

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
FULL WARRANTY
FULL WARRANTY If it doesn't work, we'll process the manufacturer's warranty for you.*
FAST SHIPPING
FAST SHIPPING Most parcel orders ship same if in stock and ordered before 2pm ET
100% FIT GUARANTEE
100% FIT GUARANTEE No-cost return option for any part on our site which has the ’100% Fit Guarantee’ icon listed.
EASY RETURNS
EASY RETURNS Convenient 30 day returns.
HAVE A QUESTION? Our friendly team is ready to help!

Product Information

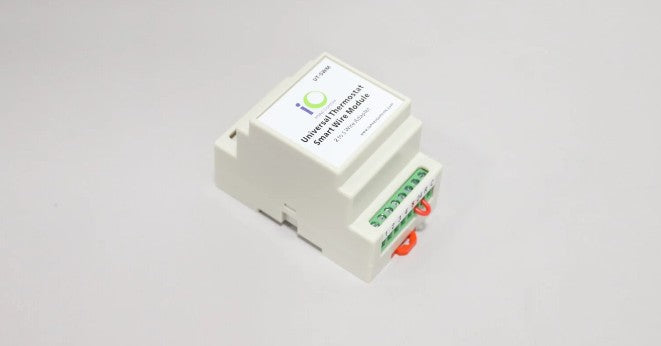

iO HVAC Controls UT-SWM
Universal Thermostat Smart Wire Module Features:
- 2 to 5 Wire Adapter
- 1 year warranty.

Features and Benefits:
- Reduces installation costs by not having to pull additional wire
- Send up to 5 additional outputs over a single pair of wires
- Supports both heat pump and conventional HVAC systems
- Compatible with virtually all major thermostat brands
- Includes compact sender module and relay receiver module

SPECIFICATIONS:

POWER SUPPLY:
- 24VAC

POWER CONSUMPTION:
- 0.15mA (No Relays), 0.45mA (All Relays On)

MAXIMUM LOAD CURRENT:
- 0.5 Amp @24VAC

RELAY SWITCHING CURRENT:
- 5 x 1 Amp (Volt Free)

MAXIMUM RANGE:
- 250 Feet

TRANSMISSION LAG:
- Up to 5 Seconds

MAXIMUM OPERATING TEMPERATURE:
- 122°F (150°F Storage)

MAXIMUM RH:
- 95% (Non Condensing)

UT Series The Universal Thermostat Smart Wire Module is an innovative and low-cost solution for any application where you have a minumum of two wires between a thermostat and HVAC unit, but need up to five additional outputs. This 2-5 wire adapter is an extremely cost-effective solution that allows installers to avoid pulling new wire in retrofit applications.

Videos Hide Videos Show Videos

Recently viewed products

Estimate shipping

What Our Customers Are Saying


Safety Information

PROPOSITION 65 WARNING
By purchasing this item, you are agreeing to have this product installed by a trained technician. The installer or servicer assumes all responsibility for injury or property damage that may result. Refer to your local jurisdiction for installer licencing requirements.
