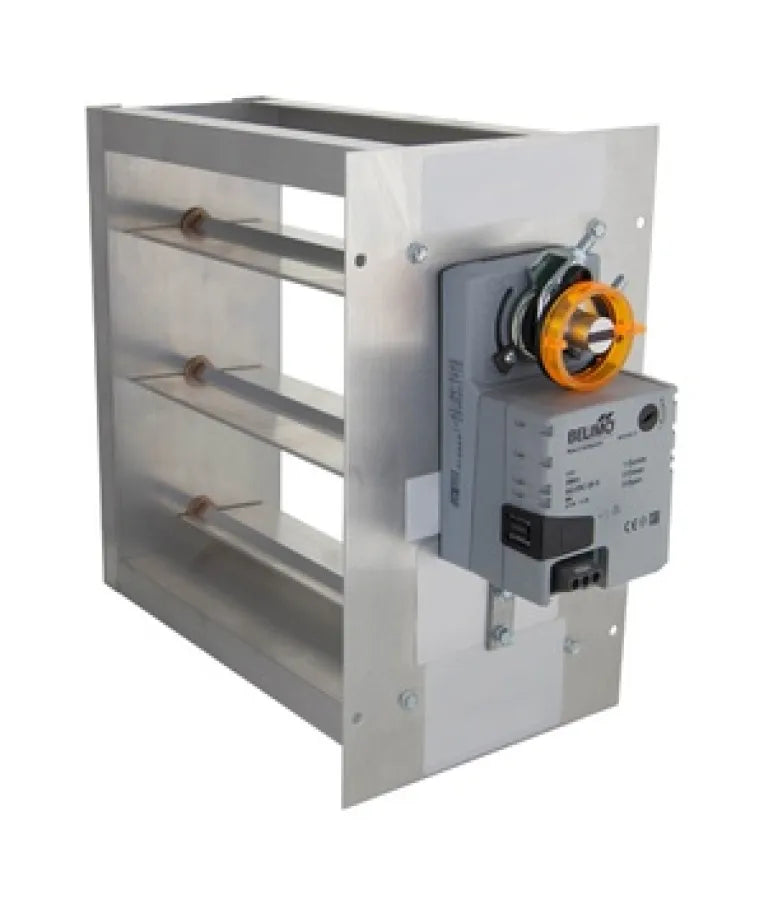

Io Hvac Controls TD-2408 Trane 24 x 08 Rectangular Zone Damper

Product Description

The IO HVAC CONTROLS TD-2408 is a Trane 24 x 08 Rectangular Zone Damper compatible with Trane ComfortLink II and American Standard AccuLink systems. It features a two-position 24V motor with power close/power open, 3-wire, and a simple adjustment for setting the minimum position. The damper offers installation flexibility with retrofit, round and rectangular options.

• Compatible with the Trane ComfortLink™ II and the American Standard AccuLink™ systems
• Two-position 24V motor; power close/power open, 3-wire
• Retrofit, round and rectangular offers installation flexibility

Product Highlights

The TD-2408 rectangular zone damper offers side-mount and bottom-mount motor options and a simple adjustment for setting the minimum position.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: TD-2408

Technical Specifications

• MPN: TD-2408
• Brand: IO HVAC Controls
• Shape: Rectangle
• Product Type: Damper
• Application: Residential
• Size: 24" x 8"
• Damper Size: 24" x 8"
• Damper Type: Rectangular Zone Damper
• Motorized: Yes
• Size (in): 24 x 8
• Spring Return: Non-Spring Return
• Style: Zone
• Construction: Extruded Aluminum
• Damper Actuator Type: 24VAC, 2.5VA, three-wire power open/power close
• Number of Wires: 3 Wire
• Timing: 60 Seconds
