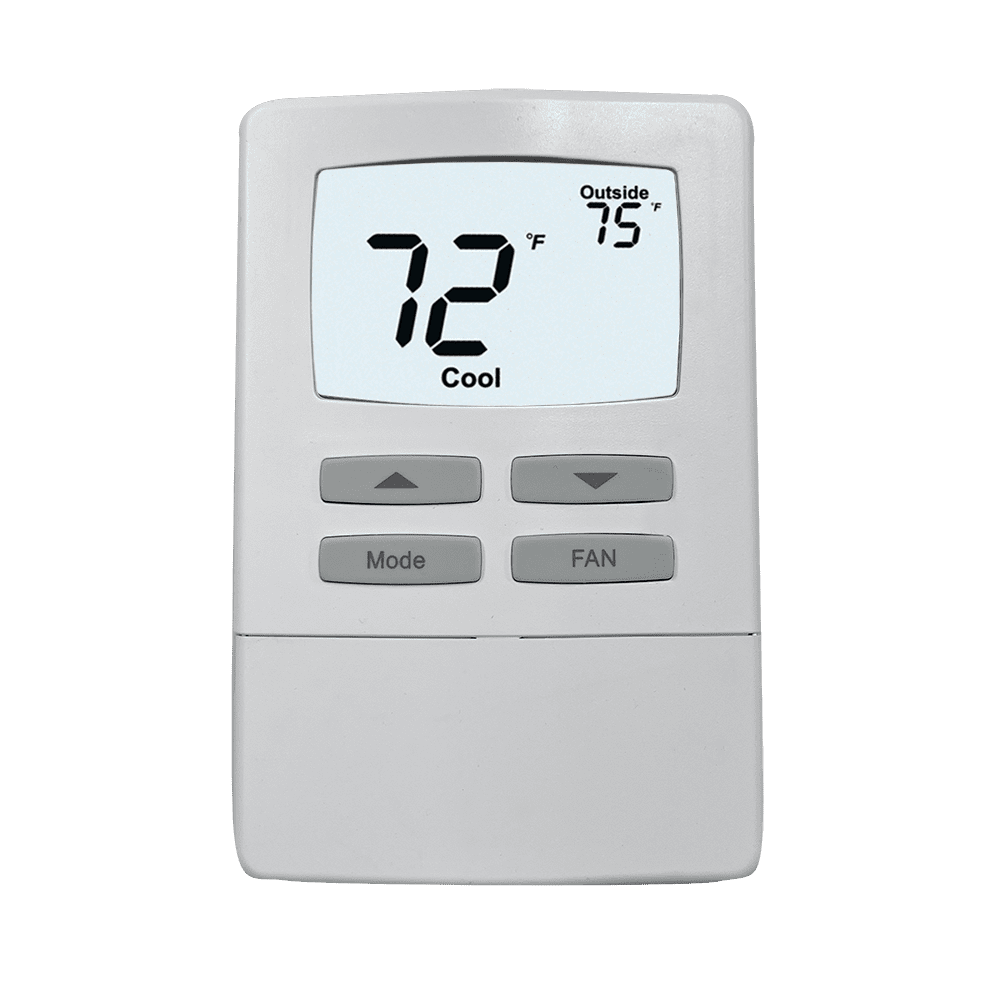

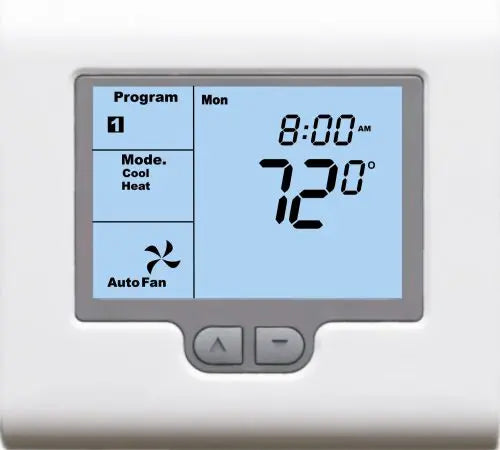

Io Hvac Controls T-32-P Universal 7-Day Programmable Thermostat, 3H/2C, Version 3.1

Product Description

The IO HVAC Controls T-32-P is a universal 7-day programmable thermostat, 3H/2C, Version 3.1. Compatible with most residential and commercial HVAC systems and ideally suited for use with zoning systems. The thermostat features manual or auto changeover and is programmable or non-programmable.

• Features adjustable setpoint limits and keyboard locks.
• Offers remote occupancy override and adaptive recovery (optimized start).
• Includes smart fan logic for commercial control and PIN protected installer setup menus.

Product Highlights

The T-32-P thermostat is a versatile solution for residential and commercial HVAC control, offering programmable features and compatibility with various systems.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: T-32-P

Technical Specifications

• Application: Residential
• Product Type: Thermostat
• Voltage: 24V
• Temperature: 32°F (0°C) Min
• Program: 7-Day
• Changeover: Automatic, Manual
• Display: Digital
• Power Type: Hardwired
• Stages: Multi
• Touchscreen: No
• Vacation Hold: No
• Terminal E: No
• Programmability: Programmable
• Auto Changeover: Yes
• Backlight: Yes
• Programmable Fan: Yes
• Set Point Limiting: Yes
• Keypad Lockout: Yes
• Filter Monitor: Yes
• Remote Inputs: Yes
• Remote Outputs: Yes
• Terminal R, Rh, or Rc: Yes
• Terminal C or X: Yes
• Terminal W or W1: Yes
• Terminal W2: Yes
• Terminal Y or Y1: Yes
• Terminal Y2: Yes
• Terminal G: Yes
• Terminal O or O/B: Yes
• Terminal Designations: G, W1, W2, Y1, Y2
• UPC: 840119900378
• Input Voltage: 24VAC 50/60 Hz +/- 15%
• Relay Rating: 24VAC @ 1 Amp maximum per relay
• Operating Temperature: 32 to 122 degrees F
• Operating RH: 0-95% (non-condensing)
• Storage Temperature: 32 to 105 degrees F
• Display Size: 2.75" W X 1.875" H
• Accuracy: +/- 0.3 degrees @ 77 degrees F
• Temperature Sensor(s): 10K NTC type 3
• Stage Delays: Minimum change over time method
• Timed Upstage: 5 - 90 minutes
• Short Cycle Protection: Off to 4 minutes
• Cycle Rate: Unlimited, 30, 10, or 6 (installer set)
• Display Resolution: 0.1 degree F
• Control Range: 41 to 122 degrees F or Heat Off / Cool Off
• Outdoor Temperature Display Range: 17 - 140 degrees F
• Back Light: Blue EL (Electro Luminescent)
• Back Light Life: 3,000 hours to half brightness
• Optimized Start/Stop: Time vs. Temperature Differential - updating
• Fan Speeds: Difference between setpoint and room temperature
• Approvals: FCC Part 15 (pending) C-tick
• Heating Stages: 3
• Cooling Stages: 2
• Digital: Yes
