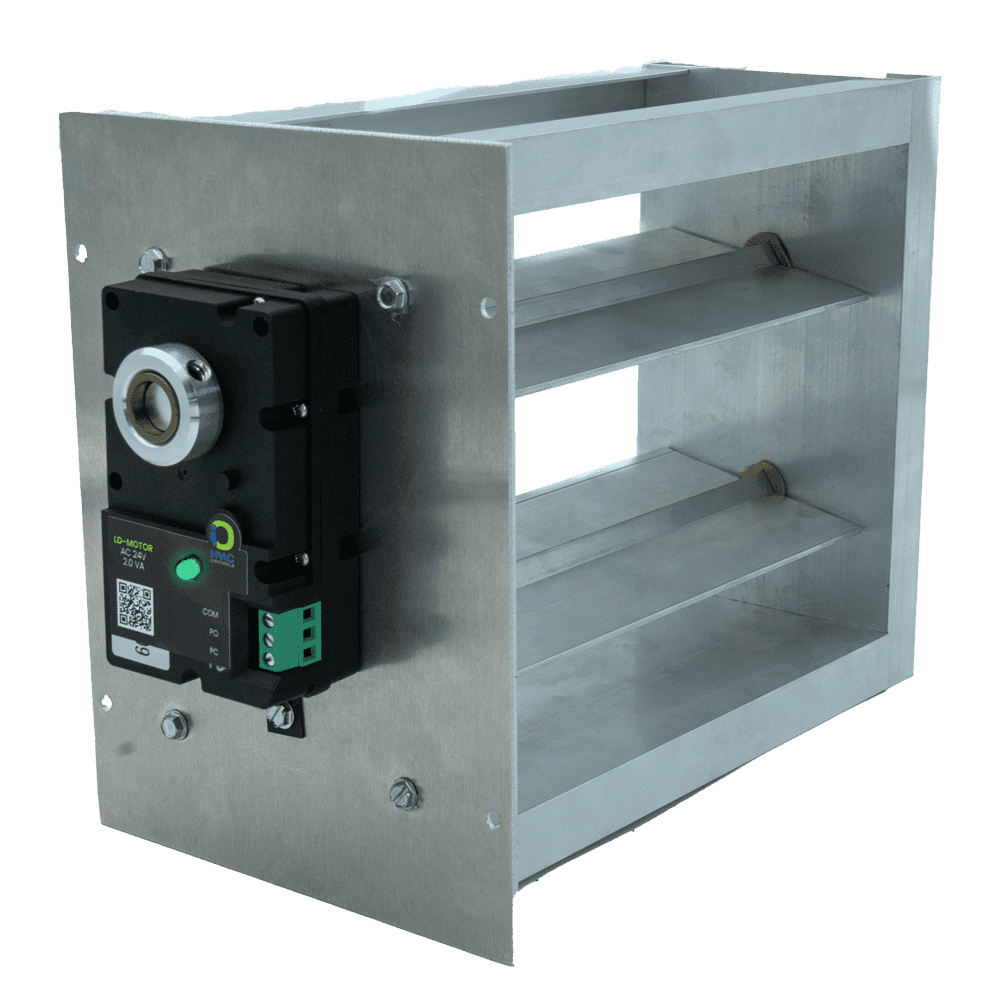

Io Hvac Controls SC-ZD-1410 Modulating Zone Damper

Product Description

The IO HVAC CONTROLS SC-ZD-1410 is a modulating zone damper designed for commercial HVAC zoning applications. It controls airflow through a 14 x 10 inch duct opening by modulating blade position across a continuous range of travel, allowing precise zone-by-zone temperature management rather than simple open/close control. At 8.3 pounds, the SC-ZD-1410 is built for direct duct installation and is typically commissioned by licensed HVAC technicians during new construction or zoning retrofit projects in light commercial and commercial buildings.

This damper is suited for commercial zoning systems where variable airflow control is required across multiple zones served by a single air handling unit. It fits into a 14 x 10 inch rectangular duct section and is appropriate for ceiling, wall, or floor duct configurations common in light commercial office, retail, and multi-zone hospitality installations. The modulating design makes it compatible with zone control panels that output a modulating signal rather than a simple two-position open/close command.

Key Features

• Modulating operation for precise, variable airflow control across commercial zones
• Designed for 14 x 10 inch rectangular duct openings
• Housing dimensions of 9.875 x 8.125 x 13.875 inches for straightforward duct integration
• Weighs 8.3 pounds, supporting stable, vibration-resistant installation in commercial ductwork
• Commercial-grade construction suitable for multi-zone light commercial HVAC systems

Compatibility

Designed as an OEM-style modulating zone damper for 14 x 10 inch commercial duct systems requiring variable airflow control.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with commercial zoning systems and duct fabrication practices. Disconnect and lock out power to the air handling unit and zone control panel before beginning installation. Verify that the zone controller output signal type matches the actuator requirements of this damper before wiring. Follow local mechanical codes and the equipment manufacturer guidelines for duct sealing and damper mounting to ensure proper airflow performance.

Technical Specifications

• Duct Size: 14 x 10 inches
• Housing Dimensions (W x H x D): 9.875 x 8.125 x 13.875 inches
• Weight: 8.3 pounds
• Operation Type: Modulating
• Application: Commercial

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: SC-ZD-1410
