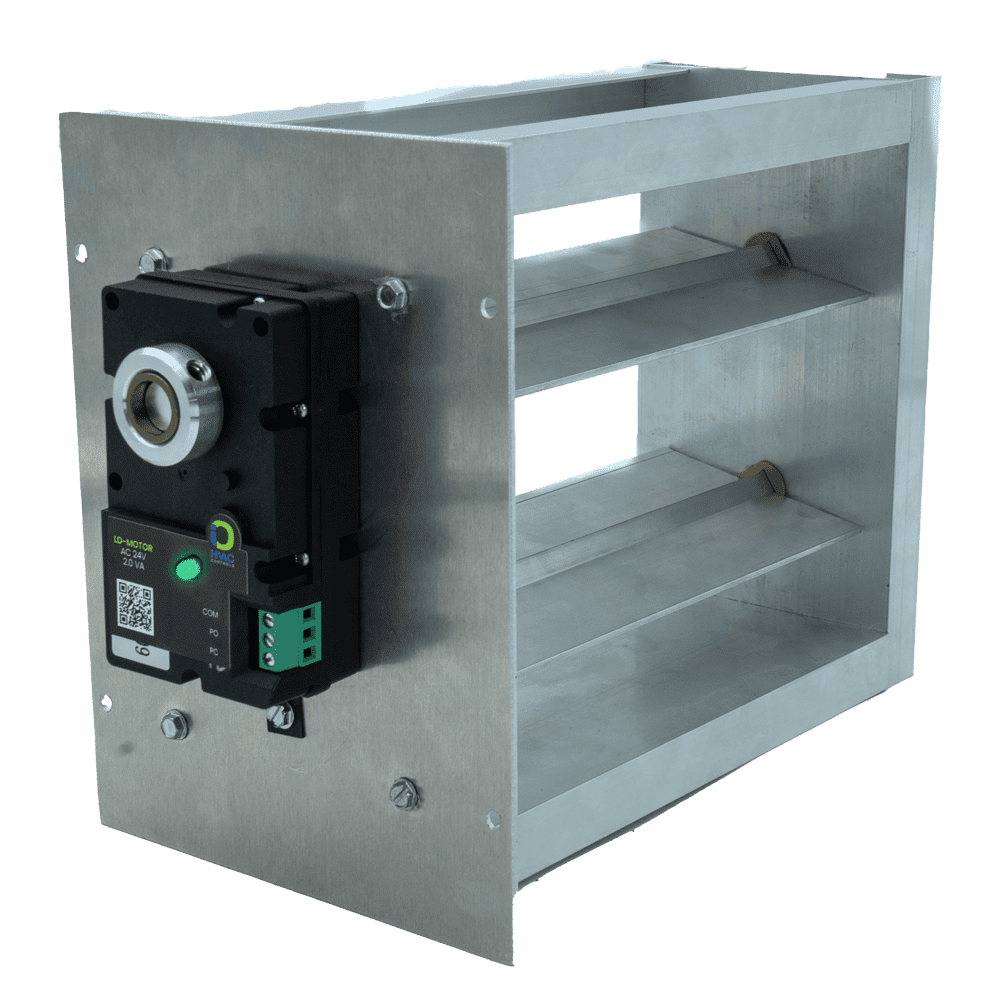

Io Hvac Controls SC-ZD-0000 Zone Damper Kit

Product Description

The IO HVAC CONTROLS SC-ZD-0000 is a modulating commercial zone damper kit designed to provide precise airflow control in commercial HVAC zoning applications. The kit ships complete with an actuator, actuator board, and sensor, giving technicians everything needed to commission a modulating zone in a single package. The actuator drives the damper blade to any position across its full range of travel, while the actuator board manages the control signal and the sensor feeds zone conditions back to the system. At 4.25 pounds and compact dimensions of 3.875 x 3.875 x 5.125 inches, the kit is sized for accessible ductwork installations.

This kit is intended for commercial HVAC zoning systems where modulating control is required rather than simple open/close operation. Typical installations include multi-zone rooftop unit systems, commercial air handlers, and variable-air-volume applications where individual zone temperature or pressure management is critical. Licensed commercial HVAC technicians perform the installation as part of a broader zoning or building automation project. The included sensor eliminates the need to source a separate zone-sensing component, reducing parts procurement time on the job.

Key Features

• Complete kit includes actuator, actuator board, and sensor in one package
• Modulating operation allows full-range damper positioning rather than simple open/close switching
• Compact form factor at 3.875 x 3.875 x 5.125 inches suits tight duct installations
• Lightweight at 4.25 pounds for overhead and in-duct mounting scenarios
• Designed for commercial zoning applications requiring independent zone airflow control

Compatibility

Designed as an OEM-style modulating zone damper kit for commercial HVAC zoning systems requiring actuator-driven damper control with integrated sensing.

Installation Notes

Installation is performed by a licensed commercial HVAC technician. Shut down and lock out the air handling unit and any associated low-voltage control power before beginning work. Verify that the control signal type and voltage supplied by the zone controller match the actuator board requirements before wiring. Follow local mechanical and electrical codes, including applicable ASHRAE and NEC references, for duct penetration and low-voltage wiring practices.

Technical Specifications

• Weight: 4.25 pounds
• Width: 3.875 inches
• Height: 3.875 inches
• Depth: 5.125 inches

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: SC-ZD-0000
