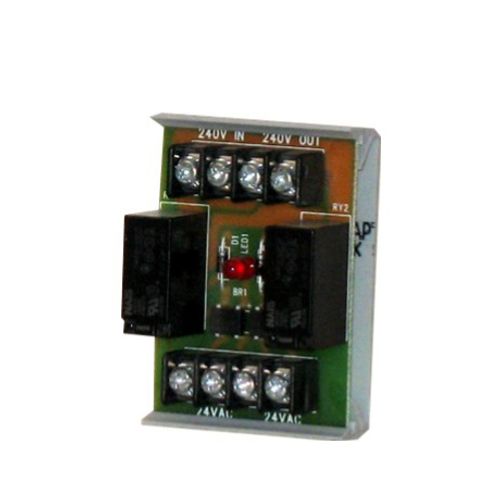

Io Hvac Controls RY-HP Heat Pump Circulating Pump Relay

Product Description

The RY-HP Heat Pump Circulating Pump Relay is manufactured by IO HVAC CONTROLS. This module allows two units to share one flow center, enabling either unit to energize the pump(s). It should be mounted in a NEMA enclosure or inside the unit control box. Contacts are rated at 10 Amps @ 277 Volts, 1/3 HP @ 250 Volts.

• Allows two compressors to share one flow controller
• Mounted in NEMA enclosure
• Easy to wire

Product Highlights

The RY-HP relay is designed for residential applications, facilitating efficient pump sharing between two units. It features easy wiring and is suitable for mounting in a NEMA enclosure.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: RY-HP

Technical Specifications

• Application: Residential
• Contact Type: DPDT
• Input Voltage: 24v
• Length: 2.75"
• Width: 2"
