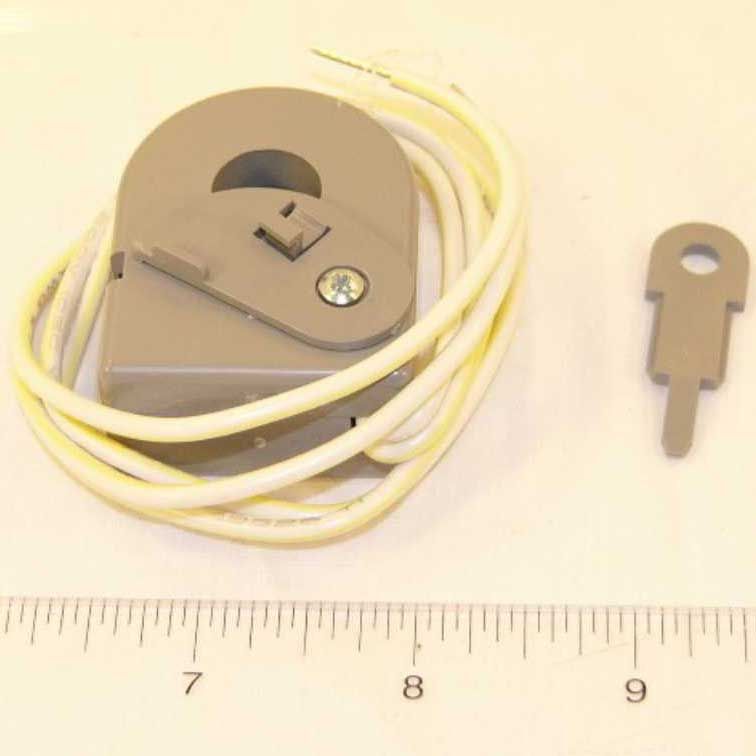

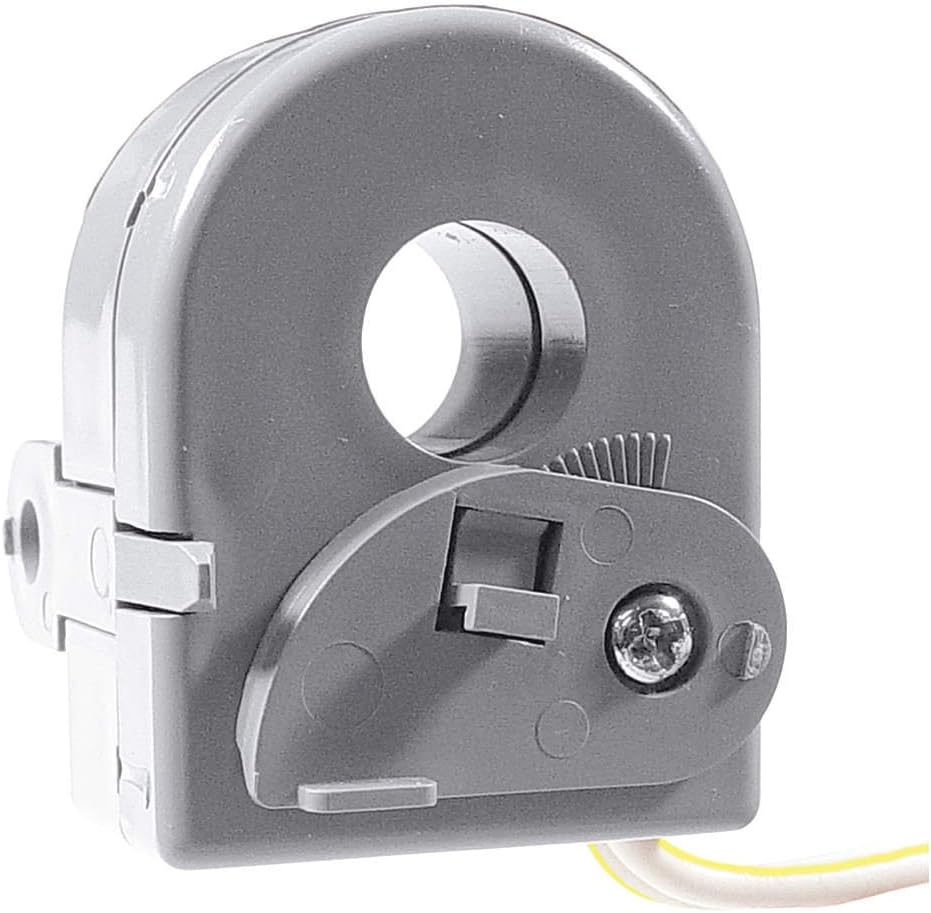

IO HVAC CONTROLS RIBXKF Current Sensor

Product Description

The IO HVAC CONTROLS RIBXKF is a current sensor that monitors electrical current from zero point two five to one hundred fifty Amps. This sensor detects issues such as locked rotors, current loss, and open heaters.

• Wide current measurement range of zero point two five to one hundred fifty Amps
• Surface mount design for easy installation
• Fixed trip point set at zero point two five Amps

Product Highlights

This current sensor facilitates reliable monitoring in HVAC systems.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• MPN: RIBXKF

Technical Specifications

• Item: Relay - Current Sensing Relay
• Input Voltage: 30V AC/DC
• AC Contact Rating: 0.40A at 30V
• DC Contact Rating: 0.40A at 30V
• Mounting Style: Surface
• Core Type: Solid
• Sensing Amp Range: 0.25 to 150.00A
• Trip Point: Fixed at 0.25A
• Trip Delay: Less than 1 second
• Sensor Opening: 0.50 inches
• Max. Inrush Current: 4.0A
• Body Height: 1.5 inches
• Body Width: 1.46 inches
• Body Depth: 2.05 inches
• Contact Form: SPST-NO
• Electrical Connection: 16 Wire Leads
• Status Indicator: None
