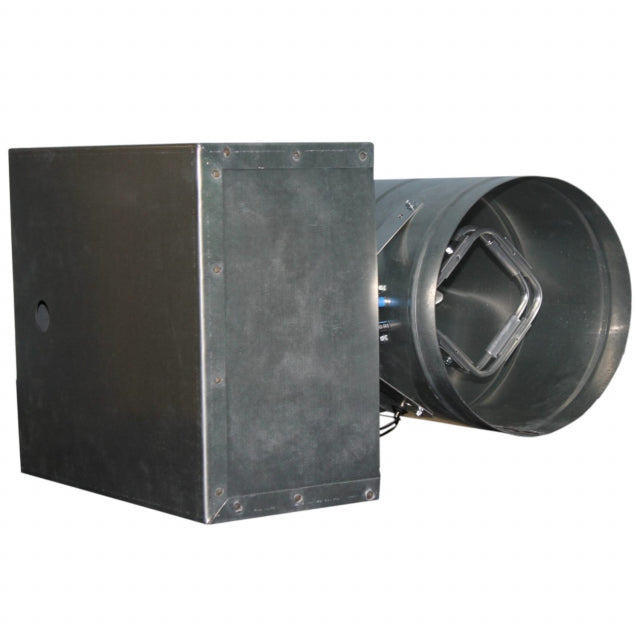

Io Hvac Controls RAT-05 5 inch Retrofit Air Terminal

Product Description

The IO HVAC CONTROLS RAT-05 is a 5-inch round retrofit air terminal designed for zone control in low-pressure single duct or multi-zone HVAC systems. This unit is installed in the branch duct before diffusers to modulate supply air. It features a multi-quadrant, averaging flow sensor, providing highly accurate flow readings within +/-5% after balancing, suitable for various inlet duct configurations.

• Readily installed into existing ductwork with minimal modification.
• Mechanically sealed, low-leakage construction.
• Damper constructed of double layer, 18-gauge galvanized steel with sandwiched flexible gasket for a tight seal (<1% at 3.0" w.c.).

Product Highlights

Achieves precise zone control in HVAC systems with accurate airflow measurement and easy installation.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: RAT-05

Technical Specifications

• Size: 5 inch
• MPN: RAT-05
• Condition: New
• Casing Material: 22-gauge galvanized steel
• Damper Material: Double layer, 18-gauge galvanized steel
• Leakage Rate: <1% at 3.0" w.c.
• Flow Sensor Accuracy: +/-5%
