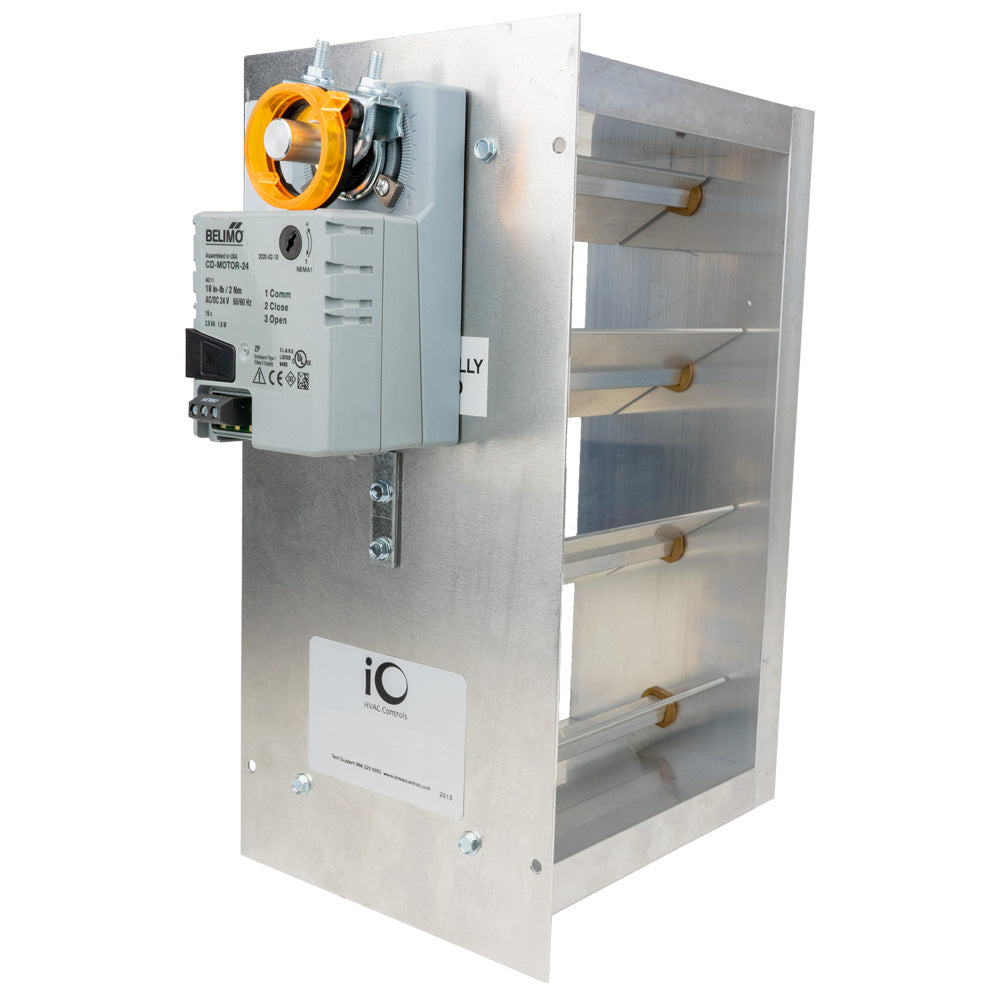

iO HVAC Controls MD-3012-BM
30 Inch X 12 Inch Rectangular Two-Position Motorized Zone Damper Features:
- 30 inch X 12 inch rectangular.
- 5 year warranty.
- Belimo 3 wire actuator.
- Bottom mount actuator.
- Damper models MD-XXXX are sized width (A) by height (B) with actuator on the (B) dimension.
- Bottom mount models MD-XXXX-BM are sized width (A) by height (B) with actuator on the (A) dimension.
- Actual (A) and (B) dimensions are undercut 1/4”.
- Standard sizes range from 8” x 8” up to 36” x 24” in 2” increments.
- Used with all ESP zone control panels and can be used with other panels using a 3-wire damper.
- 1/16” extruded aluminum frame.
- 1/16” extruded aluminum parallel blades.
- 1/16” aluminum mounting flange.
- Nylon bushings.
- Minimum position adjustment
- 24 Volt, 2.1 VA.
- 60 second timing.
- 45 lb.-in.
MD Series The MD series zone dampers are a well-built, univeral damper that are shipped complete with a 24V 3-wire Belimo® actuator. Available in both round and rectangular, these dampers are compatible with most 24V controls.
