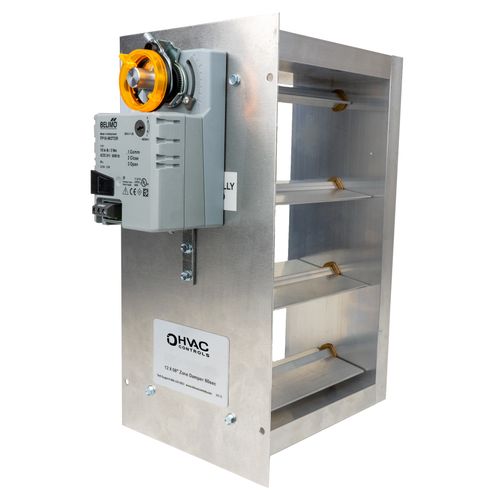

Io Hvac Controls MD-2512-BM 25 inches x 12 inches Rectangular 2 Position Zone Damper - Belimo 3 Wire Actuator - Bottom Mount

Product Description

The IO HVAC CONTROLS MD-2512-BM is a 25" x 12" rectangular zone damper with a Belimo 3-wire actuator and bottom mount. This damper features extruded aluminum parallel blades and a 24V power close/power open actuator. It is designed for residential applications and is rated for duct systems less than 1.0" WC. Includes a simple adjustment for setting the minimum position.

• 25" x 12" Rectangular Damper
• Two-position 24V motor; power close/power open, 3-wire
• Compatible with ESP panels to eliminate bypass

Product Highlights

Rectangular zone damper with Belimo actuator, ideal for residential zoning systems. Features a 24V, 3-wire actuator and is compatible with ESP panels.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: MD-2512-BM

Technical Specifications

• Application: Residential
• Shape: Rectangular
• Product Type: Damper
• Size: 25" x 12"
• Series: MD Series
• Voltage Rating: 24 V
• Power Rating: 1.5 W
• VA Rating: 2.5 VA
• Timing Range: 60 s
• Torque Rating: 18 in-lb
• Material: Aluminum
• Mounting Type: Bottom
• Motor Type: Float
• Motor Dimensions: 2-5/8 in W x 2-3/4 in D
• Pressure Rating: 1 in-WC
• Part #: MD-2512-BM
• Category: HVAC Damper
