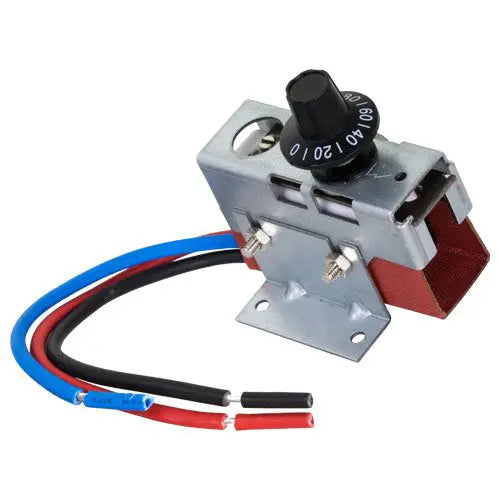

Io Hvac Controls LRD100A Tpi Spdt Heat/Cool Outdoor Bi Metal Thermostat

Product Description

The LRD100A is a Tpi Spdt Heat/Cool Outdoor Bi Metal Thermostat manufactured by IO HVAC CONTROLS. It uses a bi-metal sensor and has a setpoint range of 0-110° F. The thermostat is designed for residential applications and has a rated differential of 4-6° F. It operates on 120-277VAC and has an amp rating of 22 Amps, Resistive Max.

• Bi-Metal sensor for accurate temperature sensing.
• Setpoint range of 0-110° F.
• Suitable for residential heat/cool applications.

Product Highlights

The IO HVAC CONTROLS LRD100A is a reliable thermostat for outdoor heat/cool control in residential settings.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: LRD100A

Technical Specifications

• Product Type: Thermostat
• Application: Residential
• Power Type: Hardwired
• Sensor: Bi-Metal
• Setpoint Range: 0-110° F
• Rated Differential: 4-6° F
• Voltage: 120-277VAC
• Amp Rating: 22 Amps, Resistive Max.
• HP Ratings: 3/4 HP @ 125 VAC 1.5 HP @ 250-277 VAC
• Connections: 6” Wire Leads Red – Common Black – Make on fall below setpoint Blue – Make on rise above setpoint
