IO HVAC CONTROLS IO-FAV-06-PLUS Fresh Air Ventilation Kit

Product Description

The IO HVAC CONTROLS IO-FAV-06-PLUS is a fresh air ventilation kit designed to bring in outside air to enhance indoor air quality. This system utilizes an intake damper that operates using a microprocessor logic panel. Key features include a straightforward adjustment setup, control options for the exhaust fan, and damper override capabilities. It adheres to ASHRAE Standard 62.2 for ventilation systems, ensuring compliance with industry standards.

• Includes a twenty-volt-amp transformer.
• Adheres to ASHRAE Standard 62.2 for air quality.
• Offers adjustable exhaust fan control options.

Product Highlights

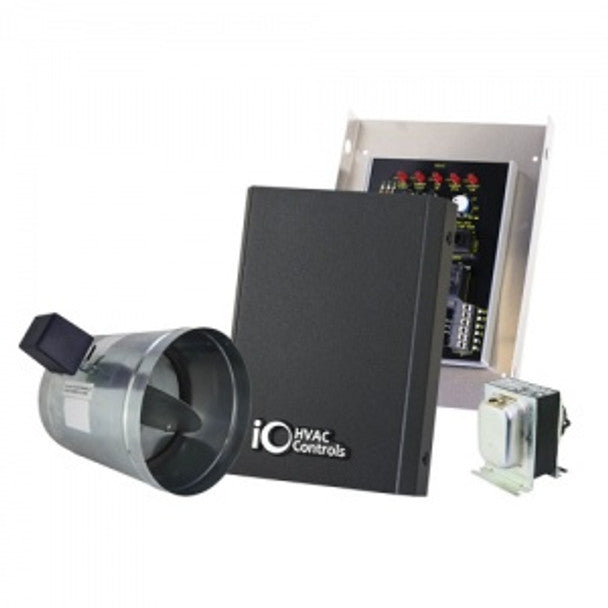

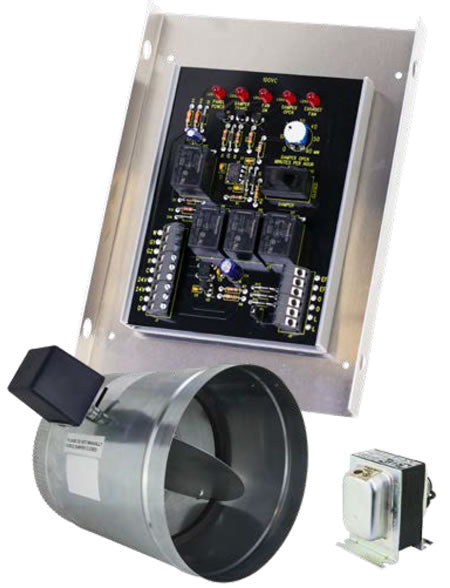

The ventilation kit integrates components such as a two-position round damper, an outdoor temperature sensor, and a humidistat. The control panel, labeled IO-FAVPAN, is sold separately. This system provides reliable performance and is suited for various applications in residential and commercial settings.

Product Information

Standard Information

• Model: IO-FAV-06-PLUS
• Brand: IO HVAC CONTROLS

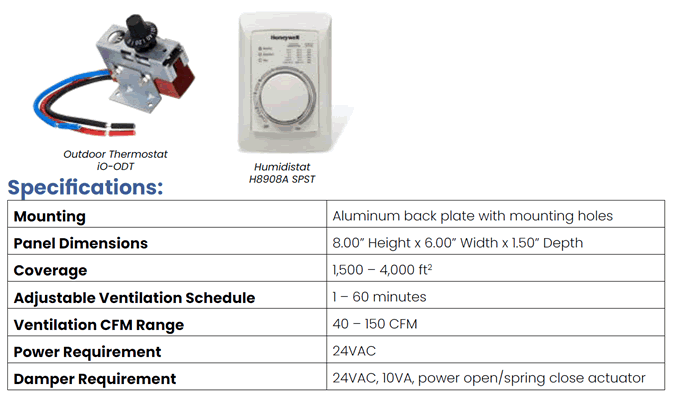

Technical Specifications

• Damper Size: 6 inches
• Coverage Area: 1,500 to 4,000 ft²
• Adjustable Ventilation Timer: 1 to 60 minutes
• Ventilation CFM Range: 40 to 150 CFM
• Power Requirement: 24VAC
• Damper Requirement: 24VAC, 10VA, power open/spring closed actuator
• Mounting: Aluminum back plate with mounting holes
• Panel Dimensions: 8.00 inches Height x 6.00 inches Width x 1.50 inches Depth
• Warranty: 5-year
