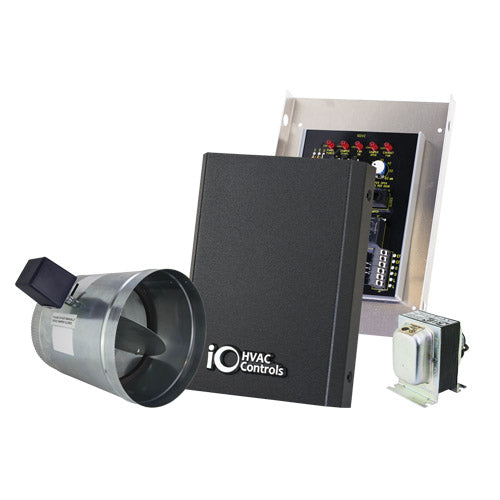

iO HVAC Controls iO-FAV-06 Fresh air ventilation control panel, 6 round 2-position damper, 12024 20VA transformer

System. FRESH AIR VENTILATION CONTROL PANEL, 6" ROUND 2-POSITION DAMPER, 120/24 20VA TRANSFORMER.

Fresh Air Ventilation

The fresh air ventilation system is designed to introduce fresh air into a building through an intake damper controlled by a micro-processor logic panel. The iO-FAV has single adjustment setup, exhaust fan control option, outdoor temperature and/or humidity limit option and damper override capabilities. It is easy-to-install and meets ASHRAE 62.2 standard. The iO-FAV comes with a 20VA transformer and 6” round damper. The control panel is available separately (iO-FAVPAN) and can be ordered with additional size dampers.

Specifications:
Mounting: Aluminum back plate with mounting holes
Panel Dimensions: 8.00” Height x 6.00” Width x 1.50” Depth
Coverage: 1,500 – 4,000 ft2
Adjustable Ventilation Timer: 1 – 60 minutes
Ventilation CFM Range: 40 – 150 CFM
Power Requirement: 24VAC
Damper Requirement: 24VAC, 10VA, power open/spring closed actuator
