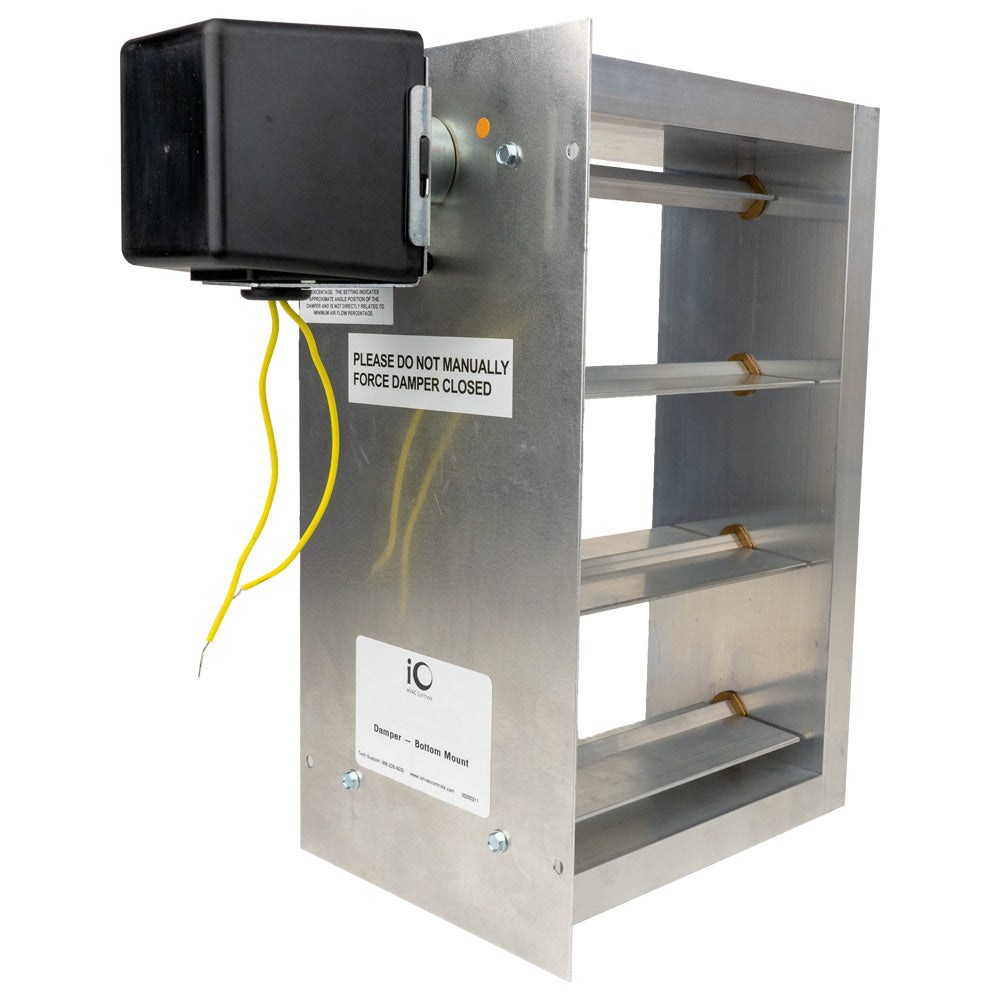

iO HVAC Controls HD-1612-BM 16 x 12 Rectangular Two-Position Zone Damper - 2 Wire Actuator - Bottom Mount
iO HVAC Controls HD-1612-BM 16 x 12 Rectangular Two-Position Zone Damper - 2 Wire Actuator - Bottom Mount

iO HVAC Controls HD-1612-BM 16 x 12 Rectangular Two-Position Zone Damper - 2 Wire Actuator - Bottom Mount

Brand: IO HVAC CONTROLS
SKU: HD-1612-BM
Availability: In Stock
Ships in 4 - 5 Business Days
$225.04
$225.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description
iO HVAC Controls HD-1612-BM
16 Inch X 12 Inch 2-wire, Two-Position Rectangular Motorized Zone Damper With Bottom Mount Actuator Features:
- 16 inch X 12 inch rectangular.
- 5 year warranty.

DIMENSIONS:
-Damper models HD-XXXX-BM are sized width (A) by height (B) with actuator on the (A) dimension.
- Actual (A) and (B) dimensions are undercut 1/4”.
- Standard sizes range from 8” x 8” up to 36” (A dimension) x 24” (B dimension) in 2” increments.
- Airflow can be right to left or left to right.

APPLICATION:
- Compatible for zone control and other HVAC applications with static pressures less than 1.0” w.c.

CONSTRUCTION:
- 1/16” extruded aluminum frame
- 1/16” extruded aluminum parallel blades
- 1/16” aluminum mounting flange
- Nylon bushings
- Minimum position adjustment

ELECTRICAL:
- 24 Volt, 10 VA, 0.43 Amp powered closed, spring return open actuator
- Also available in powered open, spring return closed
- Motor is impedance protected with no end switches

HD Series The HD Series dampers are extruded aluminum parallel blade dampers complete with a 24 volt spring return actuator. The HD Series dampers can be installed in any position and are compatible with most 24V zoning and ventilation controls. They are rated for duct systems less than 1.0” WC. These dampers have a simple adjustment for limited position. They are a highly universal option for both zoning an ventilation applications.
