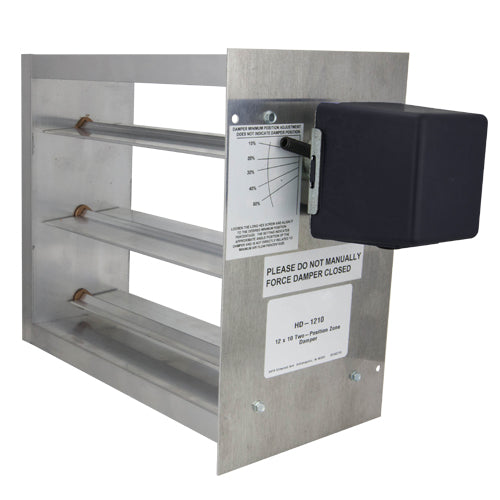

iO HVAC Controls HD-1210 Zone Damper Rectangular 12 Inch X 10 Inch

Product Description

The iO HVAC Controls HD-1210 Motorized Zone Damper is an essential component designed for regulating air flow in HVAC systems. Constructed from durable extruded aluminum, this 12 inch by 10 inch damper provides reliable performance with its two-position, two-wire setup.

• Engineered for zone control and ventilation applications.
• Accommodates static pressures less than 1.0 inches w.c.
• Features a 24V spring return actuator, providing flexibility for installation in any position.

Product Highlights

Suitable for various HVAC setups, this damper comes equipped with impedance-protected motors, ensuring long-lasting operation without the need for end switches. Its versatility is further enhanced by the simple adjustment feature for limited position settings and a comprehensive 5-year warranty.

Product Information

Standard Information

• Dimensions: Each damper is precisely undercut by a quarter inch to fit standard sizes, ranging from 8 inches by 8 inches up to 36 inches by 24 inches, in 2-inch increments.
• Construction: Features a robust aluminum frame and mounting flange, nylon bushings for reduced wear, and aluminum parallel blades for effective air control.

Technical Specifications

• Electrical Specs: Operates on 24 Volt, 10 VA, 0.43 Amp; powered closed and spring return open.
• Compatible Systems: Can be integrated with most 24V zoning and ventilation controls.
