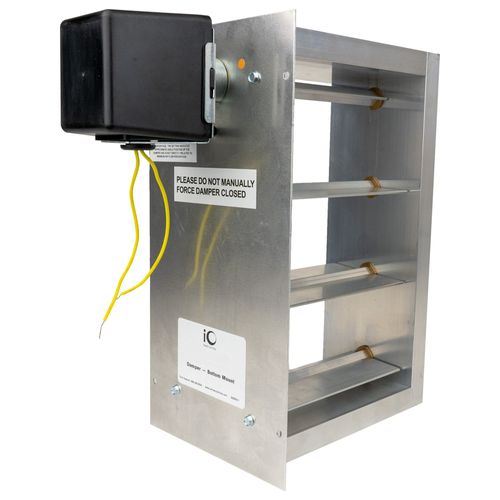

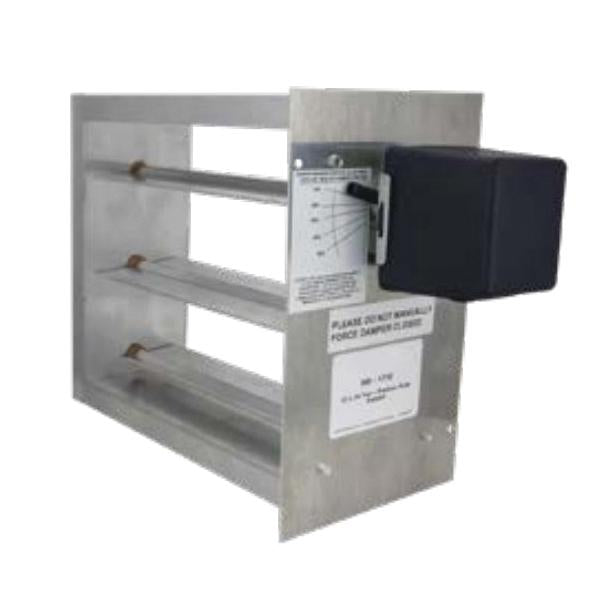

Io Hvac Controls HD-1208-BM-PO 12 x 08 Two-Position Zone Damper - Bottom Mount - Powered Open

Product Description

The IO HVAC CONTROLS HD-1208-BM-PO is a 12 x 08 two-position zone damper with a bottom mount and powered open functionality. These HD Series dampers feature extruded aluminum parallel blades and a 24V spring return actuator. Rated for duct systems less than 1.0" WC, these dampers have a simple adjustment for limited position and are compatible with most 24V zoning and ventilation controls.

• Compatible with most zone control panels
• Extruded aluminum
• 24V synchronous motor

Product Highlights

Universal for zoning and ventilation, the HD series dampers are ready for installation in any position.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: HD-1208-BM-PO
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change): United States
• Size: 12" x 8"
• Application: Residential
• Product Type: Damper
• Shape: Rectangular
• Series: HD Series
• Voltage Rating: 24 V
• Amperage Rating: 0.43 A
• VA Rating: 10 VA
• Material: Aluminum
• Mounting Type: Bottom
• Motor Type: Power Closed/Spring Open
• Pressure Rating: 1 in-WC
• Width: 8 in
• Height: 12 in
• Item Number: HD-1208-BM-PO
• Brand: iO HVAC Controls
• Total Size: 12 x 08
• Actuator Placement on the dimension: 12
