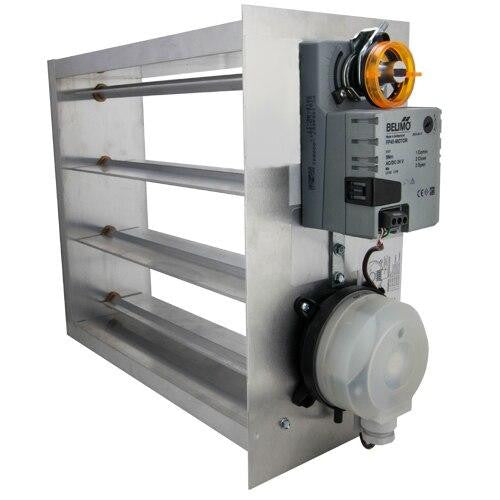

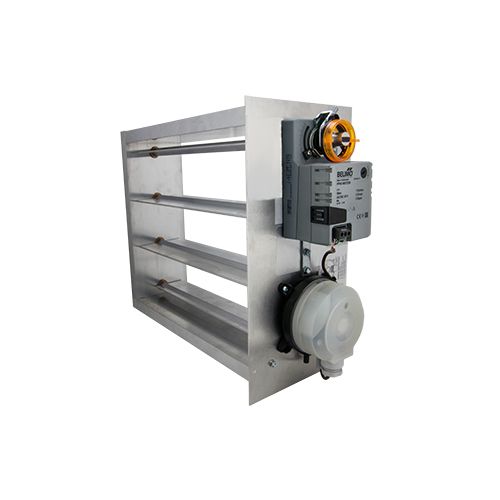

Io Hvac Controls EB-3012 Electronic 30 x 12 Bypass Damper

Product Description

The IO HVAC CONTROLS EB-3012 electronic bypass damper automatically bypasses excess air when duct static pressure increases due to closing zone dampers. It utilizes a floating-type motorized actuator along with the iO-SPC-800 static pressure control, which features a calibrated setpoint dial for easy adjustment. Recommended for systems from 0.08" WC up to 1.20" WC of static pressure.

• Automatically bypasses excess air.
• Features a floating-type motorized actuator.
• Maintains system static pressure by modulating the bypass damper.

Product Highlights

The EB-3012 is an electronic bypass damper used to automatically bypass excess air and maintain system static pressure.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: EB-3012
• Country of Origin: United States

Technical Specifications

• MPN: EB-3012
• Brand: IO HVAC Controls
• Category 1: Bypass
• Category 2: Dampers
• Product Type: Damper
• Size: 30" x 12"
• Application: Residential
• Shape: Rectangle
• Motorized: Yes
• Spring Return: Non-Spring Return
• Type: Bypass Dampers
