Io Hvac Controls Eb-2624 26 x 24 Heavy Duty Motorized Bypass Damper

Product Description

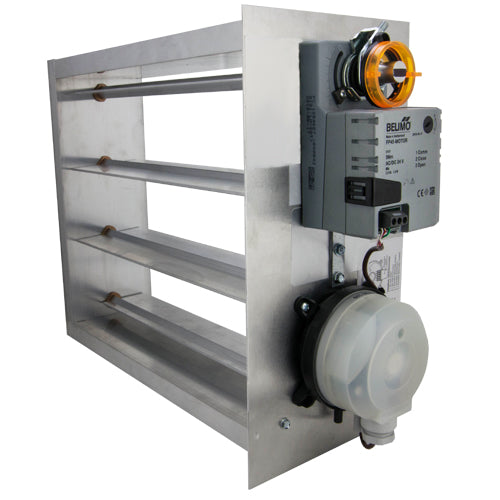

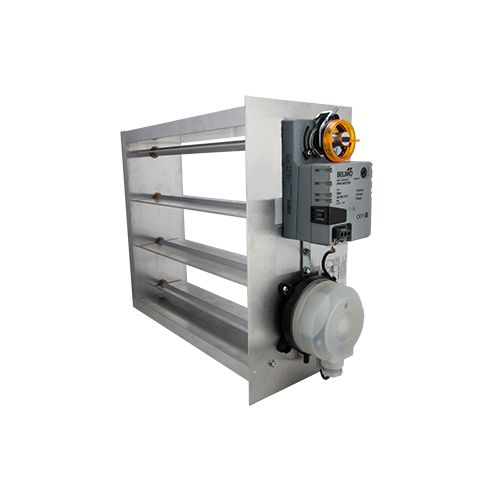

The IO HVAC CONTROLS EB-2624 is a 26 x 24 Heavy Duty Motorized Bypass Damper. EB series electronic bypass dampers automatically bypass excess air when duct static pressure increases due to closing zone dampers. It utilizes a floating-type motorized actuator along with the iO-SPC-800 static pressure control, which maintains system static pressure by modulating the bypass damper.

• Size: 26" x 24"
• Shape: Rectangle
• Recommended for systems from 0.08" WC up to 1.20" WC of static pressure.

Product Highlights

The EB-2624 is ideal for residential applications, ensuring optimal static pressure. It features a fully calibrated setpoint dial for easy setup and adjustment.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: EB-2624
• Country of Origin: United States

Technical Specifications

• MPN: EB-2624
• Brand: IO HVAC Controls
• Application: Residential
• Shape: Rectangular
• Size: 26" x 24"
• Product Type: Damper
• Part #: EB-2624
• Category: HVAC
• Subcategory: HVAC Damper
• Motorized: Yes
• Size (in): 26 x 24
• Spring Return: Non-Spring Return
• Type: Bypass Dampers
• Height: 26
• Width: 24
• Total Size: 26 x 24
• Actuator Placement on the dimension: 24
• Style: Bypass
