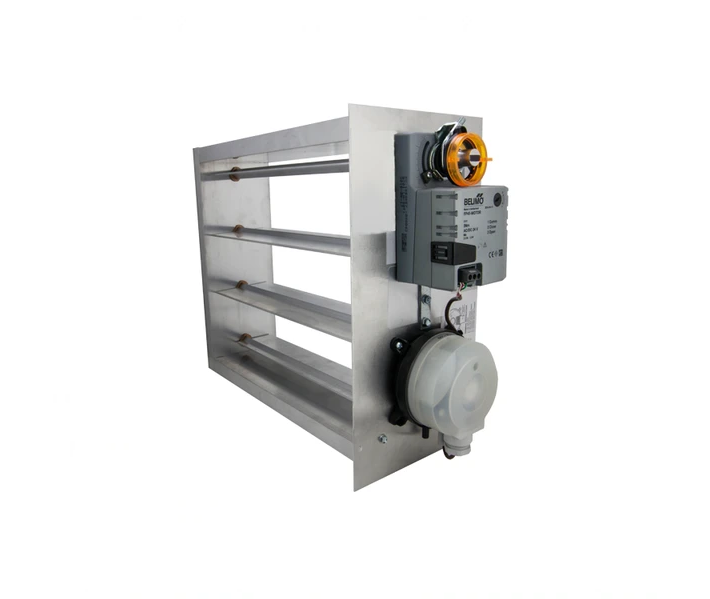

Io Hvac Controls EB-2206 Electronic 22 x 06 Bypass Damper

Product Description

The IO HVAC CONTROLS EB-2206 Electronic 22" x 6" Bypass Damper is designed to automatically bypass excess air when duct static pressure increases due to closing zone dampers. It utilizes a floating-type motorized actuator and the iO-SPC static pressure control, featuring a calibrated setpoint dial for easy adjustment. Recommended for systems with static pressure from 0.08" WC up to 1.20" WC.

• Easy Adjustment
• Many sizes available
• Installation flexibility

Product Highlights

Ensures precise airflow control and integrates into building automation systems. Compact, robust, and easy to install, it optimizes airflow and reduces system noise.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: EB-2206
• Country of Origin: United States

Technical Specifications

• Category 1: Bypass
• Category 2: Dampers
• MPN: EB-2206
• Brand: IO HVAC Controls
• Application: Systems with static pressure .08" to 1.20" WC
• Shape: Rectangle
• Size: 22" x 6"
• Product Type: Damper
• Construction: Aluminum frame and blades, nylon bushings
• Damper Actuator Type: 24VAC, 2VA, floating-point
• Timing: 90 Seconds
• Damper Position Indicator: Green LED indicates when the damper is opening
• Voltage: 24 VAC
