Io Hvac Controls EB-22 Bypass Damper, Electronic, 22 inches

Product Description

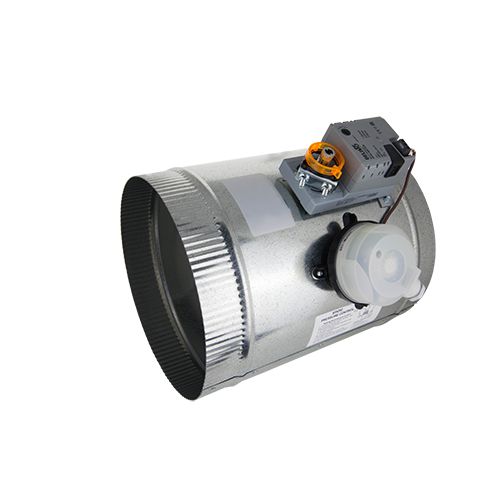

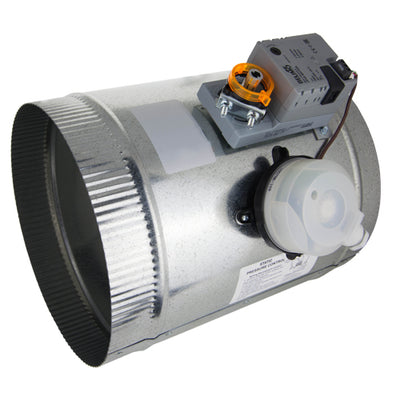

The IO HVAC CONTROLS EB-22 is a 22" electronic bypass damper. It is designed to automatically bypass excess air when increases in duct static pressure occur due to closing of zone dampers. It utilizes a floating-type motorized actuator along with the iO-SPC static pressure control. Recommended for systems from 0.08" WC up to 1.20" WC of static pressure.

• Easy Adjustment
• Many sizes available
• Installation flexibility

Product Highlights

This 22" electronic bypass damper reduces system noise and provides optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: EB-22
• Country of Origin: United States

Technical Specifications

• Size: 22"
• Application: Residential
• Product Type: Damper
• Construction: 24-gauge steel shell, aluminum shaft, nylon bushings, blade seals
• Damper Actuator Type: 24VAC, 2VA, floating-point
• Timing: 90 Seconds
• Damper Position Indicator: Green LED indicates when the damper is opening
• Brand: iO HVAC Controls
• Motorized: Yes
• Shape: Round
• Size (in): 22
• Spring Return: Non-Spring Return
• Type: Bypass Dampers
