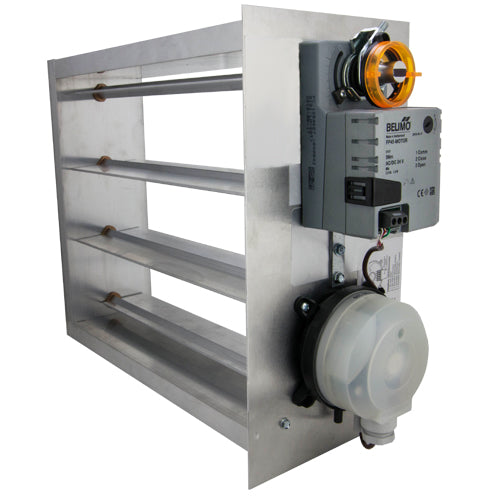

iO HVAC Controls EB-2010 20 Inch X 10 Inch Rectangular Electronic Bypass Damper

Product Description

The iO HVAC Controls EB-2010 is a 20 inch by 10 inch heavy-duty motorized electronic bypass damper, designed as a direct replacement for EWC model EBD-20X10. This robust damper is ideal for professional HVAC applications requiring precision static pressure control.

• Motorized electronic control with 3-wire floating point actuator.
• Constructed from high-strength extruded aluminum.
• Comes with a comprehensive five-year warranty.

Product Highlights

Equipped with a heavy-duty aluminum frame and parallel blades, this damper ensures efficient airflow management within HVAC systems. Its accurate motor operation maintains system static pressure between 0.08 and 1.20 W.C. with ease.

Product Information

Standard Information

• Brand: iO HVAC Controls
• Model: EB-2010

Technical Specifications

• Dimensions: 20 inches by 10 inches
• Material: Extruded aluminum
• Actuator: 24 VAC, 2.5VA, 45 lb.-in torque
• Timing: 90 seconds
• Stroke: 90 degrees
• Pressure Range: 0.08 to 1.20 W.C.
• Warranty: 5 years
