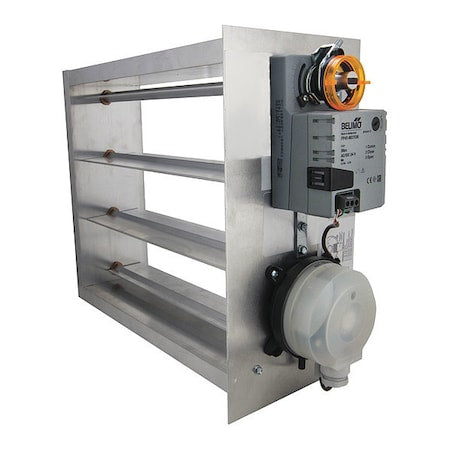

iO HVAC Controls EB-1610 16 Inch X 10 Inch Rectangular Heavy Duty Motorized Electronic Bypass Damper
iO HVAC Controls EB-1610 16 Inch X 10 Inch Rectangular Heavy Duty Motorized Electronic Bypass Damper
Actual product may vary from displayed image(s)

iO HVAC Controls EB-1610 16 Inch X 10 Inch Rectangular Heavy Duty Motorized Electronic Bypass Damper, replacement for EWC EBD-16X10

SKU / MPN:
EB-1610
SKU / MPN: EB-1610
$332.57

Available - Ships in 4 - 5 Business Days

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!
215-326-9845

Chat
Email

Product Information

iO HVAC Controls EB-1610
16 Inch X 10 Inch Rectangular Heavy Duty Motorized Electronic Bypass Damper Features:
- 16 inch X 10 Inch rectangular.
- 5 year warranty.

DIMENSIONS:
- Damper models EB-XXXX are sized width (A) by height (B) with actuator on the (B) dimension.
- Actual (A) and (B) dimensions are undercut 1/4”.
- Standard sizes range from 8” x 8” up to 36” x 24” in 2” increments.

APPLICATION:
- Compatible for zone control and other HVAC applications in maintaining system static pressure from 0.08” to 1.20” W.C.

CONSTRUCTION:
- 1/16” extruded aluminum frame
- 1/16” extruded aluminum parallel blades
- 1/16” aluminum mounting flange
- Nylon bushings
- Minimum position adjustment

ELECTRICAL:
- 24 VAC, 2.5VA
- 3-wire floating point actuator
- 45 lb.-in.
- 90 second timing
- 90° stroke

STATIC PRESSURE CONTROL:
- Factory mounted on “B” dimensions 14” and up
- 1/4” I.D. flex hose connection
- Tubing and plastic pressure probe included
- Solid state control design
- Built-in LED for damper direction
- 0.08” to 1.20” W.C. pressure range
- 40” W.C. maximum pressure
