Io Hvac Controls D-Z1-2408 Zone One 24 x 08 Damper Assembly

Product Description

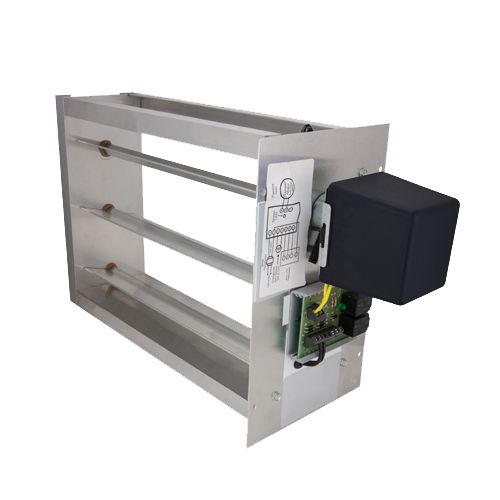

The IO HVAC CONTROLS D-Z1-2408 Zone One 24 x 08 Damper Assembly is a rectangular two-position damper assembly. It features a 24V 30-second actuator and a duct temperature sensor with an actuator control board wired on the damper. This stand-alone damper assembly and thermostat monitor duct air temperature to help maintain the room temperature.

• 24 x 08 Rectangular two-position zone one damper assembly
• 24V 30 second actuator
• Duct temp sensor and actuator control board wired on damper

Product Highlights

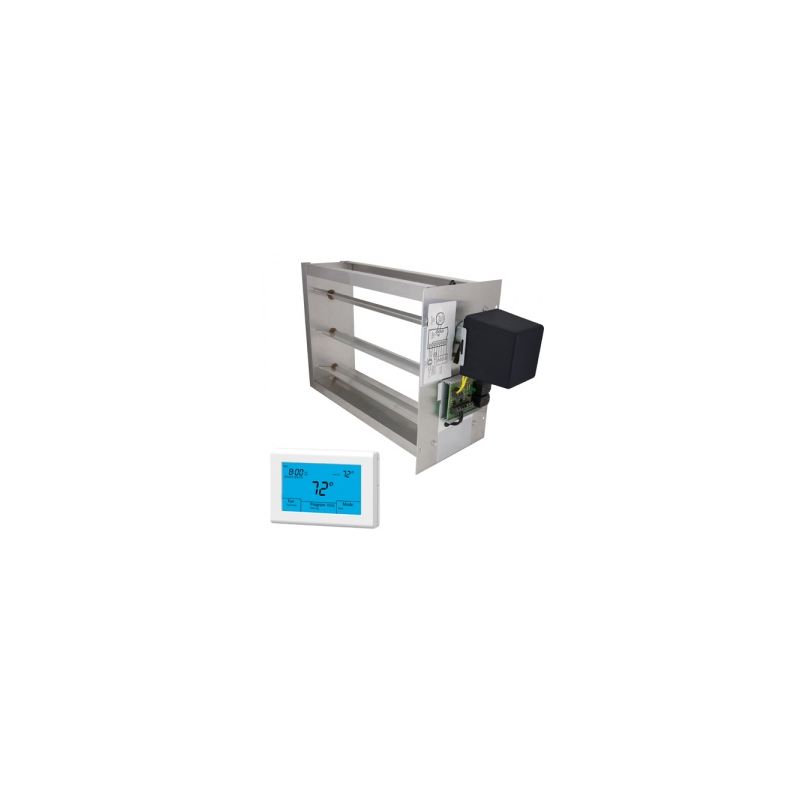

The IO HVAC CONTROLS D-Z1-2408 damper assembly helps maintain room temperature using a thermostat and duct air temperature monitoring.

Product Information

Standard Information

• Brand: IO HVAC CONTROLS
• Manufacturer Part Number: D-Z1-2408

Technical Specifications

• Category 1: Zone One Two Position
• Category 2: Dampers
• Brand: IO HVAC Controls
• MPN: D-Z1-2408
• Height: 8"
• Width: 24"
• Depth: 6"
• Size: 24" x 8"
• Product Type: Damper
• Shape: Rectangle
• Application: Residential
• Motorized: Yes
• Spring Return: Non-Spring Return
• Type: Rectangular Dampers
• Actuator Placement on the dimension: 24
