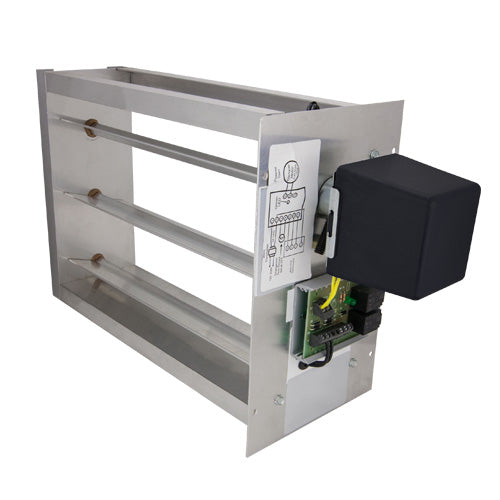

iO HVAC Controls D-Z1-2010 Damper Assembly 20 Inch X 10 Inch Two-Position Zone One

Product Description

The iO HVAC Controls D-Z1-2010 Damper Assembly is designed for precise air flow control within HVAC systems. This product ensures effective zoning of heating and cooling in both residential and commercial settings.

• 20 inch x 10 inch size for optimal fit in various duct configurations
• Two-position functionality for enhanced control
• Built-in LED status indicator for easy operation monitoring

Product Highlights

Constructed from high-grade materials, the D-Z1-2010 features an aluminum frame and blades ensuring durability and reliability. The damper allows for simple manual adjustments and is compatible with the UT32 Thermostat.

Product Information

Standard Information

• Brand: iO HVAC Controls
• Model: D-Z1-2010
• Category: HVAC Damper
• Type: Two-Position Zone One Damper Assembly

Technical Specifications

• Dimensions: 20 inches by 10 inches
• Material: Aluminum frame and blades
• Control Type: 24VAC, 10VA, 2-wire power open/spring close
• Installation: Flexibility with round and rectangular options
• Warranty: 5 year warranty
