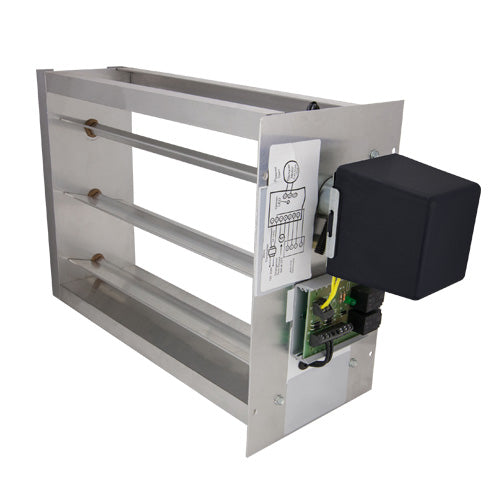

iO HVAC Controls D-Z1-0806 Zone One Damper 8 Inch X 6 Inch

Product Description

The iO HVAC Controls D-Z1-0806 is a rectangular two-position zone one damper assembly engineered for effective room-by-room air control. This damper assembly measures eight inches by six inches and is tailored for high precision in airflow management.

• Enhanced airflow control with two-position functionality.
• Independent operation from HVAC equipment.
• Constructed for durability with aluminum frame and blades.

Product Highlights

This HVAC damper offers stand-alone control of single or multiple rooms, providing a tailored solution to over-heating or over-cooling issues without needing a control panel. It features a 24VAC, 10VA, 2-wire power open/spring close actuator for reliable performance.

Product Information

Standard Information

• Warranty: 5 years
• Control: Pre-wired controls, auto changeover

Technical Specifications

• Material: 24-gauge steel spiral shell, aluminum shaft
• Actuator: 24VAC, 10VA, 2-wire power open/spring close
• Size options: Round: 6 inches to 18 inches, Rectangular: 6 inches x 6 inches to 36 inches x 24 inches
• Status Indicator: LED status indicator
