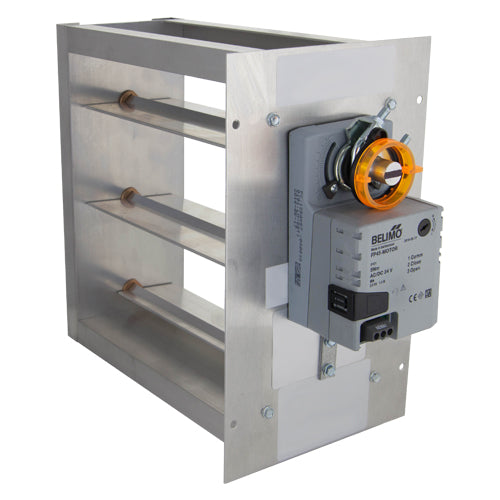

iO HVAC Controls CD-2020
20 Inch X 20 Inch Carrier Rectangular Zone Damper Features: - 20 inch X 20 inch rectangular.
- 10 year warranty.
DIMENSIONS:
- Damper models CD-XXXX are sized width (A) by height (B) with actuator on the (B) dimension.
- Bottom mount models CD-XXXX-BM are sized width (A) by height (B) with actuator on the (A) dimension.
- Actual (A) and (B) dimensions are undercut 1/4”.
- Standard sizes range from 8” x 8” up to 36” x 24” in 2” increments.
APPLICATION:
Compatible for Carrier® and Bryant® Infinity™ and Evolution™ zone control systems.
CONSTRUCTION:
- 1/16” extruded aluminum frame
- 1/16” extruded aluminum parallel blades
- 1/16” aluminum mounting flange
- Nylon bushings
- Minimum position adjustment
ELECTRICAL:
-24Volt, 2.1 VA
-3-Wire
-15 second timing
-18 lb.-in.
CD Series offers a wide selection of both round and rectangular dampers that are compatible with the Carrier® Infinity™ and Bryant® Evolution™ zone control systems.
