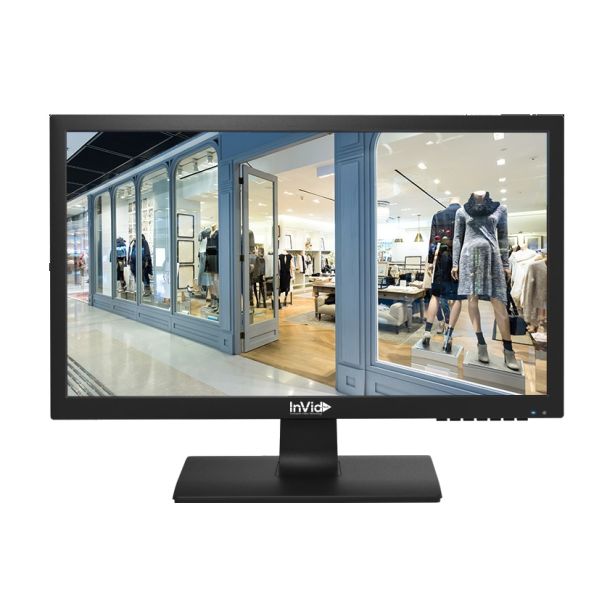

Invid Tech IMHD-22HVB 1080p 22 inches Monitor HDMI/VGA/BNC

Product Description

The INVID TECH IMHD-22HVB is a 1080p 22" monitor with HDMI, VGA, and BNC inputs. It features a TFT-LED panel, a resolution of 1920 x 1080, and a brightness of 300cd/m². Designed for continuous 24/7 operation, this monitor is suitable for video surveillance and security applications. It supports VESA mount 100x100 for flexible installation options.

• Built for 24/7 performance, ensuring continuous, reliable video surveillance for critical security environments
• Portrait Mode Support
• Full High Definition Quality: 1920 x1080

Product Highlights

This monitor is ideal for monitoring environments, ensuring safety and security with high-quality image clarity and flexible connectivity.

Product Information

Standard Information

• Brand: INVID TECH
• Manufacturer Part Number: IMHD-22HVB

Technical Specifications

• UNSPSC Code: 46171612
• Model Name: IMHD-22HVB
• Screen Size: 22''
• Active Display Area (W x H): 476.64×268.11 mm
• Display Mode: 16:9
• LED Type: TFT-LED
• Resolution: 1920 × 1080
• Display Color: 16.7M
• Pixel Pitch (H x V): 0.248 × 0.248 mm
• Brightness (nits): 300cd/m 2
• Contrast Ratio: 10000:1
• Viewing Angle: 178(H) /178(V)
• Response Time: 5ms
• Backlight: LED
• HDMI 2.0: 1
• VGA: 1
• BNC input: 2
• BNC output: 1
• Speaker: 2x3W (Stereo)
• Color System: PAL/NTSC/SECAM
• OSD Control: Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
• 3D comb filter: Yes
• Video Noise Reduction: Yes
• Power: DC12V ,50/60Hz
• Working Temperature: -22°F ~ 185°F (-30C° ~ 85C°)
• Power Consumption: Typical 20W
• Menu: Chinese/English(other languages supported)
• Mounting: Stand mount, VESA mount 100x100
• MTBF: 50000Hours
• NDAA Compliant: Compliant
• Viewing: Color
• Monitor Size: 21.5 inch
• Mount Option: VESA 100 x 100
• Monitor Input: BNC, HDMI, VGA
• Monitor Resolution: 1920 X 1080
• Features: 16:9 Display, Video Loop
• Connector: BNC-In x 1, BNC-Out x1, VGA-In x 1, HDMI-In x 1
• Video Loop: Yes
• 16:9 display: Yes
• HDMI 2.0 Input: 1
• VGA Input: 1
• BNC Video Inputs: 2
• BNC Video Outputs: 1 (looping)
• Viewing Angle (H / V): 178° (H) / 178° (V)
• Power Input: DC 12 V, 50/60 Hz
• Menu Languages: Chinese / English (other languages supported)
• Mounting Options: Stand mount, VESA 100 × 100
• Included Accessories: Industrial PSU, screws, cable holder, quick start guide
